Genuine Blur 150 Parts (NOT Blur 220i)

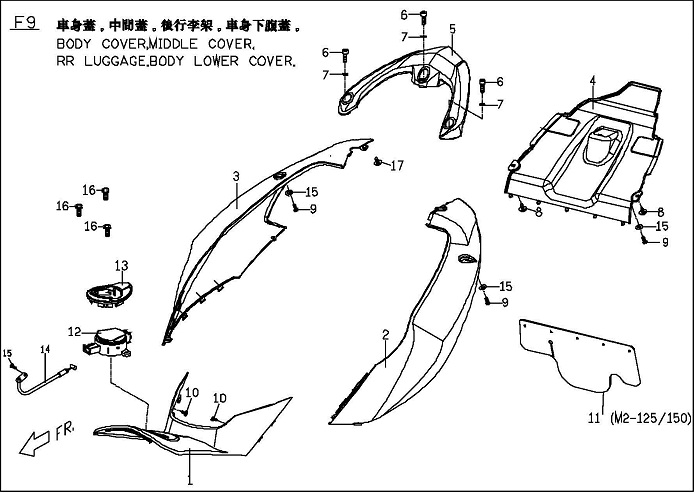

Blur Body Panels

Blur Body Panels


BLUR 150 BODY PANELS

updated 8.14.12

PART

PART NAME

BLUR 150
ORANGE BLACK

BLUR 150
BLACK GRAY

 BLUR SS220i
GREY

 BLUR SS220i
WHITE

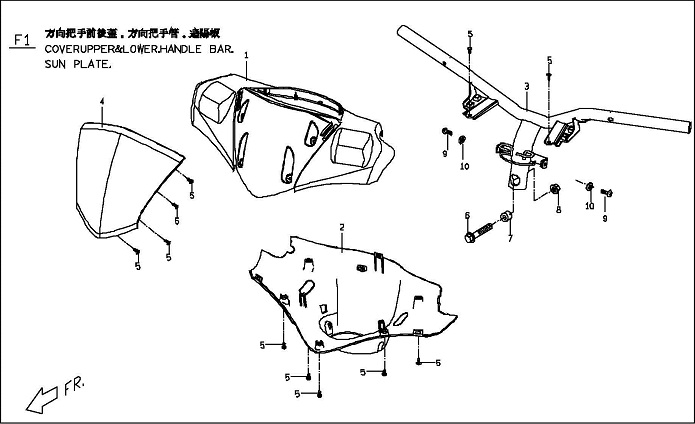

1

   HANDLE COVER UPPER

M26130002R0

M2613000690

M26130007N0

M2613000710

2

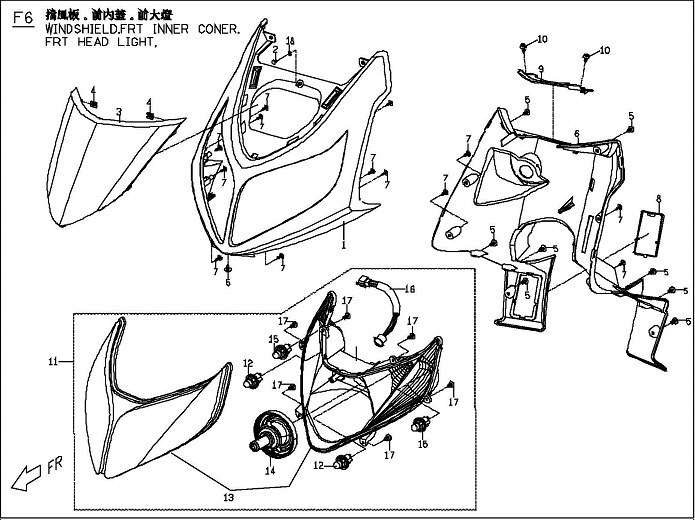

   WINDSHIELD

M26210006B0

M26210006B0

M26210007N0

M2621000710

3

   FR FENDER

M26320016B0

M26320016B0

M26320017N0

M2632001710

4

   BODY COVER,LH

M26253006B0

M26253006B0

M26253007N0

M2625300710

5

   BODY COVER,RH

M26255006B0

M26255006B0

M26255007N0

M2625500710

6

   TURN SIGNAL FRONT ASSY,INNER COVER(LH)

M26213006B0

M26213007R0

M26213007R0

M2621300710

7

   TURN SIGNAL FRONT ASSY,INNER COVER(RH)

M262A3006B0

M262A3007R0

M262A3007R0

M262A300710

8

   LOWER COVER(LEFT)

M26263006B0

M26263006B0

M26263017N00

M26263017100

9

   LOWER COVER(RIGHT)

M26265016B00

M26265016B00

M26265037N00

M26265037100

10

   KEEL COVER,LH

M26240112R0

M2624011690

M26240117R0

M2624011710

11

   KEEL COVER,RH

M262D0112R0

M262D011690

M262D0117R0

M262D011710

12

   AGAINST SUN PLATE

M2613020000

M2613020000

M2613020000

M2613020000

13

   WINSHIELD,OUTER COVER(BLACK)

M2621010690

M2621010690

M2621010690

M2621010690

14

   HANDLE COVER LOWER

M2614001650

M2614001650

M26140026500

M26140026500

15

   INNER COVER,FRT

M262C0136500

M262C0136500

M262C0136500

M262C0136500

16

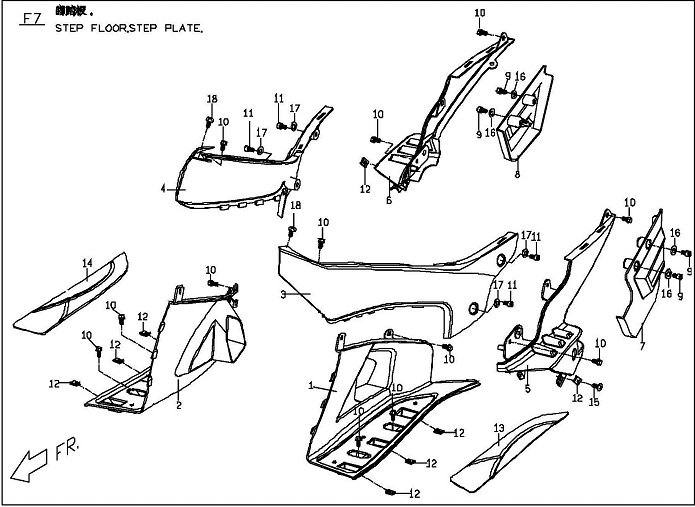

   STEP FLOOR,LH

M2624001650

M2624001650

M26240026500

M26240026500

17

   STEP FLOOR,RH

M262D001650

M262D001650

M262D0026500

M262D0026500

18

   LEFT HANGER COVER

M2624060650

M2624060650

M26240816505

M26240816505

19

   RIGHT HANGER COVER

M2624070650

M2624070650

M26240716505

M26240716505

20

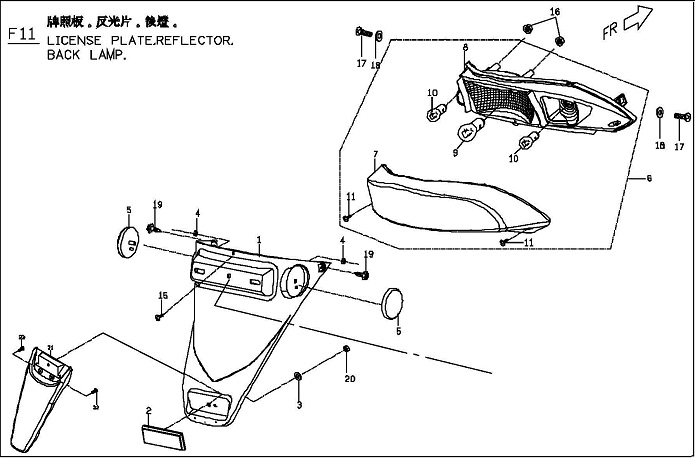

   LICENCE PLATE

M2636001650

M2636001650

M26360026500

M26360026500

21

   FUEL TANK COVER,FR.

M26250116500

M26250116500

M26250126500

M26250126500

22

   REAR FENDER

M2634000650

M2634000650

C76340006500

C76340006500

23

   RR LUGGAGE BRACKET

M26760002R0

M2676000690

M26760007R0

M2676000710

*

   MIRROR LEFT

NA

NA

NA

BF61F0100000

*

   MIRROR RIGHT

NA

NA

NA

BF61F0200000

*

   MIRROR SET ONLY

P2616000000

P2616000000

BF6160000002

NA

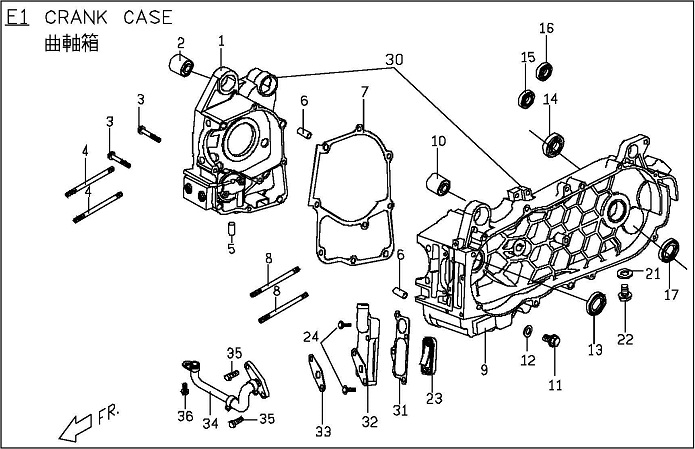

Page 1 Crankcase
Genuine Blur Crankcase
Genuine Blur Crankcase Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C50610000001S 1 RH CRANKCASE M2-150
2 E1061020000 1 RUBBER BUSH
3 90190605003 2 HEXAGON FLANGE BOLT
4 90170818800 2 STUP BOLT
5 G1061070000 1 PLUG OIL
6 93540801400 2 LOCK PIN
7 C5061041000 1 CRANKCASE GASKET
8 90170819500 2 STUD BOLT
9 C50620100002 1 LH.CRANKCASE M2-150
10 E1061020000 1 RUBBER BUSH
11 90181201500 1 HEXAGON FLANGE BOLT DRAIN OIL
12 92141200006 1 PLAIN WASHER
13 95572032601 1 OIL SEALTC TYPE M2-150
14 96510620407 1 DEEP GROOVE BALL BEARING
15 96510620200 1 DEEP GROOVE BALL BEARING
16 96510620301 1 DEEP GROOVE BALL BEARING
17 95572032600 1 OIL SEAL TC TYPE FOR PULLEY
21 92140800001 1 PLAIN WASHER
22 90190801200 1 HEXAGON FLANGE BOLT
23 C5286010000 1 SECOND AIR REED VALVE COMP
24 90190602700 2 HEXAGON FLANGE BOLT
30 C506K0100002 1 RH AND LH CRANKCASE ASSY. M2-150
31 C1286161000 1 GASKET SECOND AIR COVER
32 C5286060000 1 COVER,SECOND AIR M2-150
33 C1286190000 1 GASKET,TUBE
34 C3286201000 1 TUBE COMP M2-150
35 90190603502 2 HEXAGON FLANGE BOLT
36 90190601200 1 HEXAGON FLANGE BOLT M2-150

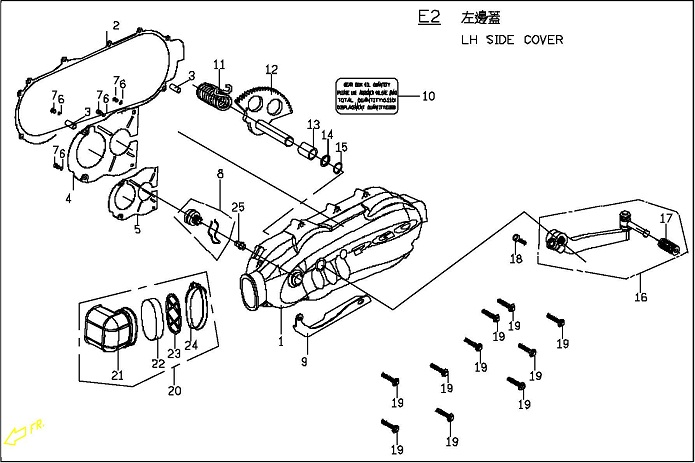

Page 2 Left Side Cover
Genuine Blur Left Side Cover
Genuine Blur Left Side Cover Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C1063010720 1 LH SIDE COVER
2 C1063021000 1 GASKET LEFT COVER
3 93540801400 2 LOCK PIN
4 C10630600001 1 PARTITION PLATE
5 C1063120000 1 PARTITION PLATE PACKING
6 92110500000 4 SPRING WASHER
7 90050500900 4 C-R ROUND HD. TAPPING SCREW
8 C1251001000 1 DRIVEN GEAR & SPG. ASSY.
9 C1062081000 1 BRACKET, CENTER STAND
10 C16031400001 1 GEAR OIL NOTICE LABEL(ENGLISH)
11 C1251112000 1 TORSION SPRING
12 C1251101000 1 KICK,SHAFT ASSY
13 C1251120000 1 BUSH,KICK SPINPLE
14 92141700002 1 PLAIN WASHER
15 92171700000 1 RETAINING RING C-TYPE
16 C1251200000 1 ARM,KICK STARTER ASSY
17 E1251240000 1 RUBBER,PAD,KICK STARTER
18 90210802500 1 HEXANON SOCKET HEAD CAP BOLT
19 90190604001 10 HEXAGON FLANGE BOLT
20 M2063100000 1 BREATHER PIPE COMP
21 M2063030000 1 BREATHER PIPE
22 C1063092000 1 SPONGE,BREATHER PIPE
23 C1063110000 1 FIXING PLATE
24 C1706280000 1 CLAMP
25 C1251171000 1 START FIXED SHAFT

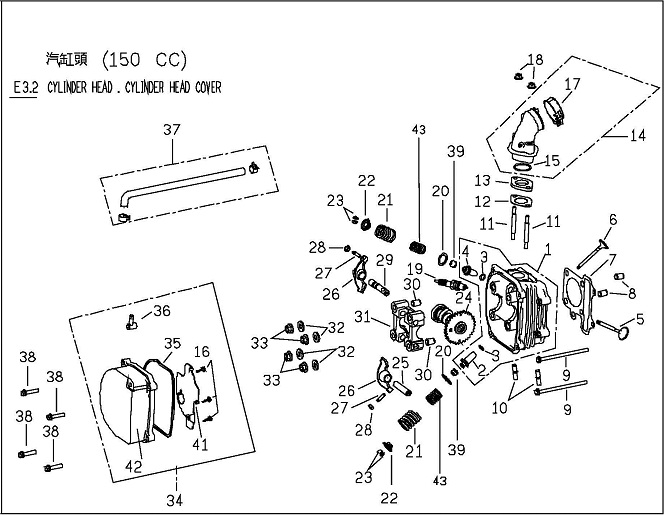

Page 3 (Cylinder Head Assembly)
Genuine Blur Cylinder Head Assembly
Genuine Blur Cylinder Head Assembly Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C50710120001 1 HEAD COMP. CYLINDER W/H SAI
5 C5071200000 1 VALVE EXHAUST
6 C5071300000 1 VALVE INLET
7 C5071071000 1 GASKET HEAD CYL.
8 93541001401 2 LOCK PIN
9 90190610000 2 HEXAGON FLANGE BOLT
10 90170802900 2 STUD BOLT
11 90170606300 2 STUD BOLT
12 C1261321000 1 INSULATOR CARB GASKET
13 C1261310000 1 INSULATOR CARB
14 C1261052000 1 INTAKE MANIFOLD COMP
15 95512700001 1 O RING
16 90150400800 4 C-R TAPPING MACHINE SCREW
17 C1261061000 1 HOSE CLAMP
18 92040600000 2 HEXAGON FLANGE NUT
19 C12220000002 1 IGNITION PLUG
20 92431600002 2 PLAIN WASHER
21 C5071411000 2 SPRING,VALVE RED
22 C1071440000 2 RETAIER VALVE SPRING
23 C1071430000 4 COTTER VALVE
24 C5073000000 1 CAM,SHAFT ASSY. M2-150
25 C1072060000 1 SHAFT,EX.ROCKER ARM
26 C1072010000 2 VALVE RXKER ARM
27 C1072420000 2 SCREW TOPPED ADJUSTER
28 92020500001 2 HEXAGON NUT
29 C1072050000 1 SHAFT,EX.ROCKER ARM
30 93541001401 2 LOCK PIN
31 C1072430000 1 CAMSHAFT HOLDER
32 92140800000 4 PLAIN WASHER
33 92040800000 4 HEXAGON FLANGE NUT
34 C2071102000 1 CYL.HEAD COVER COMP.
35 C1071120000 1 DACKING,CYL. HEAD COVER
36 C1071130000 1 TUBE CYL HEAD COVER
37 ES071190000 1 PCV PIPE ASSY
38 90190602700 4 HEXAGON FLANGE BOLT
39 C1071451000 2 VALVE SEAL
41 C10711500001 1 PARTITION Plate
42 C10711100003 1 CYLINDER HEAD COVER CP/CS
43 C5071421000 2 SPRING,VALVE

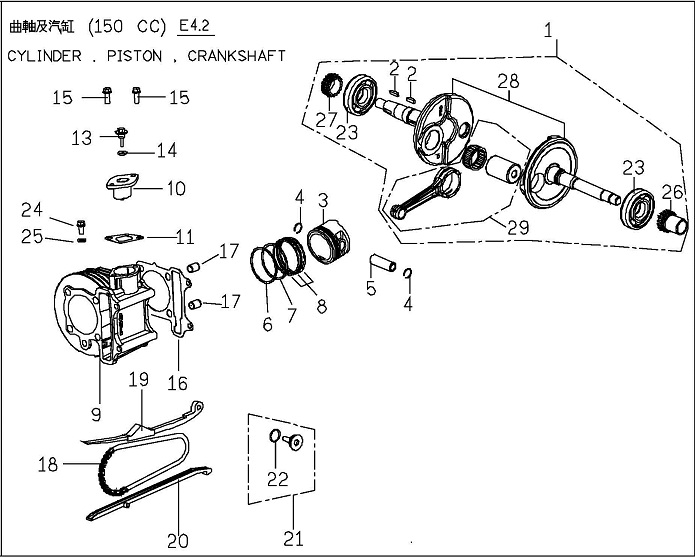

Page 4 Cylinder, Piston, Crankshaft
Genuine Blur Cylinder Piston Crankshaft
Genuine Blur Cylinder Piston Crankshaft Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 M2066501000 1 CRANKSHAFT COMP. M2-150
2 93530402500 2 WOODRUFF KEY
3 C5067012000 1 PISTON
4 G1067151000 2 CLIP,PISTON PIN
5 C5067110000 1 PISTON PIN
6 C5067310000 1 PISTON RING (1)
7 C5067320000 1 PISTON RING (2)
8 C5067400000 1 OIL SCRAPER RING COMP
9 C50640100005 1 CYLINDER
10 C5072500000 1 CHAIN ADJUSTER COMP.
11 C5072481000 1 GASKET,CHAIN ADJUSTER
13 90070600600 1 CHAIN ADJUSTER BOLT
14 95511000002 1 O RING
15 90190602000 1 HEXAGON FLANGE BOLT
16 C5064111000 1 GASKET CYLINDER
17 93541001401 2 LOCK PIN
18 C1072460000 1 CHAIN,CAMSHAFT
19 C1072440000 1 TENSIONER,CAM CHAIN
20 C5072470000 1 GUIDE COMP,CAM CHAIN
21 C1072490000 1 PIVOT,CAM CHAIN TENSION
22 95511500001 1 O RING
23 C1062100000 2 ROLLER BEARING
24 90190601200 1 HEXAGON FLANGE BOLT
25 92140600011 1 PLAIN WASHER
26 C5066130000 1 TIMING SPROCKET
27 C1066140000 1 OIL PUMP SPROCKET
28 M206F010000 1 LH & RH CRANKSHAFT ASSY.
29 C506F1100002 1 CONNECTING ROD ASSY.

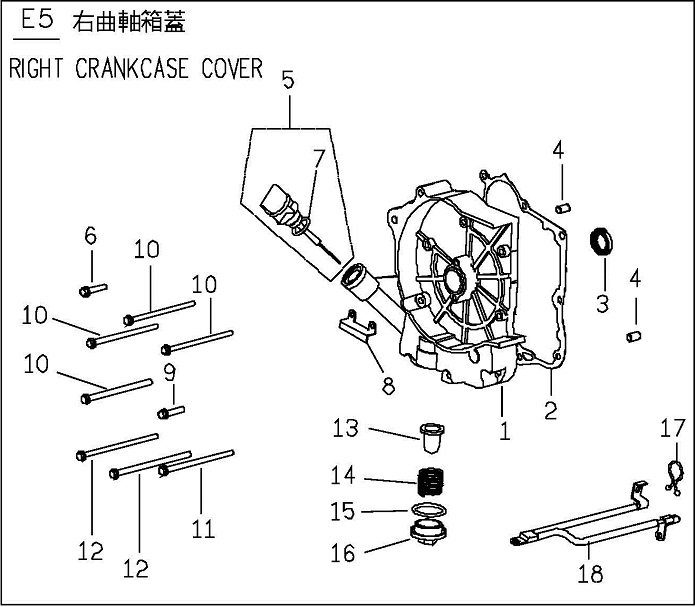

Page 5 Right Crankcase Cover
Genuine Blur Right Crankcase Cover
Genuine Blur Right Crankcase Cover Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C10680100002 1 RH. CRANKCASE COVER
2 C1068021000 1 GASKET RH. CRANKCASE COVER
3 95572030501 1 OIL SEAL TC TYPE FOR RH CASE COVER
4 93540801400 2 LOCK PIN
5 C2068110000 1 GAUSE,OIL LEVEL COMP
6 90190603000 1 HEXAGON FLANGE BOLT
7 95511800001 1 O-RING
8 C1706640000 1 A.C.G PLATE
9 90190602700 1 HEXAGON FLANGE BOLT
10 90190609500 4 HEXAGON FLANGE BOLT
11 90190610000 1 HEXAGON FLANGE BOLT
12 90190611000 2 HEXAGON FLANGE BOLT
13 G1062180000 1 SCREEN OIL FILTER
14 C1062190000 1 SPRING OIL FILTER SCREEN
15 95513100000 1 O-RING
16 C1062240000 1 CAP TAPPET ADJUSTING HOLE
17 C1701270000 1 PURSE LOCK
18 M22410300006 1 START MOTOR, LINE

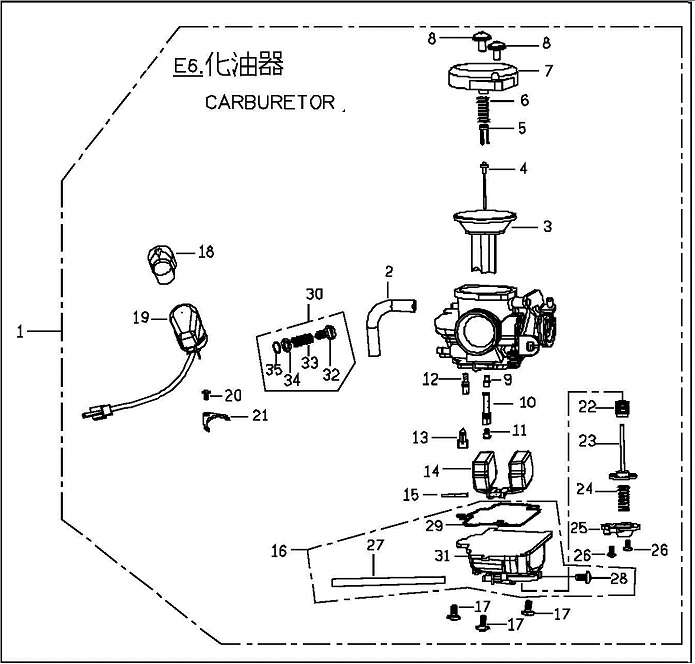

Page 6 Carburetor
Genuine Blur Carburetor
Genuine Blur Carburetor Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C51510000003 1 CARBURETOR ASSY (SETTING 115) M2-150
2 16199GY69000 1 TUBE SET
3 14029232201 1 VACUUM PISTON COMP
4 N4254HGGN 1 JET NEEDLE COMP
5 12298057000 1 VALVE PLATE SET
6 1290A232000 1 SPG;COMPR
7 10308737003 1 TOP SET
8 1108031100 2 SCREW,PAN
9 N42633C00 1 NEEDLE JET M2-150
10 N41318C00 1 NEEDLE JET HOLDER
11 991011161020 1 MAIN JET
12 1001440H0381 1 SLOW JET M2-150
13 16155ZG8L100 1 FLOAT VALVE SET
14 10528622101 1 FLOAT COMP
15 W952525250 1 ARM PIN
16 K3500840100 1 FLOAT CHAMBER SET
17 93500040121H 3 SCREW,PAN
18 12308567001 1 HOLDER CAP
19 40000940000 1 AUTO BYSTARTER SET
20 938920400818 1 SCREW WASHER
21 10908732001 1 SET PLATE
22 10280547000 1 SEALING CAP
23 12018302201 1 DIAPHRAGM COMP
24 1290A072000 1 SPG;COMPR
25 12308502000 1 COVER
26 93500040101H 2 SCREW;PAN

Page 7 Transmission
Genuine Blur Transmission
Genuine Blur Transmission Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C5123701000 1 BELT PULLEY COMP,DRIVEN FACE
2 P1123410000 1 NUT
3 C1123300000 1 BODY COMP,DRIVE PLATE
4 C1123420000 3 DAMPER RUBBER,CLUTCH
5 C1123430000 3 SPRING,CLUTCH
6 C51234400000 3 WEIGHT SET,CLUTCH
7 C1123450000 1 PRESSURE PLATE,CLUTCH
8 92180700000 3 RETAINING RING E TYPE
9 C1123330000 1 COLLAR,SPRING
10 C5123520000 1 SPG,DRIVEN FACE
11 C1123530000 1 SEALED SOCKET
12 95514000001 2 0-RING
13 95593441400 2 OIL SEAL G TYPE
14 C1123250000 3 BUSH
15 C1123240000 3 PIN,GRIDE
16 C1123210000 1 BODY COMP,DRIVEN FACE
17 96520690200 1 DEEP GROOVE BALL BEAR ONE SEAL
18 92162800000 1 RETAINING RING C TYPE
19 C1123110000 1 DOBY COMP,DRIVEN FACE
20 96550202900 1 NEEDLE BEARING
21 C1123510000 1 OUTER BODY COMP,CLUTCH
22 92041200002 1 HEXAGON FLANGE NUT
23 92141200005 1 PLAIN WASHER
24 C11220000001 1 V BELT
25 C11211000001 1 FACE MOVABLE DRIVE
26 C1251030000 1 RATCHET KICK STARTER
27 92141200005 1 PLAIN WASHER
28 92041200002 1 HEXAGON FLANGE NUT
29 C1121200000 6 WEIGHT ROLLER COMP. M2-150
30 C1121321000 3 SIDE PIECE
31 C1121310000 1 RAMP PLATE
32 C1121050000 1 BOSS,MOVABLE DRIVE FACE
33 C11210600001 1 DRIVE FACE
34 C51236000000 1 DRIVEN PULLEY ASSY.
35 C5066051000 1 DRIVEN PULLEY ASSY. M2-150 ONLY

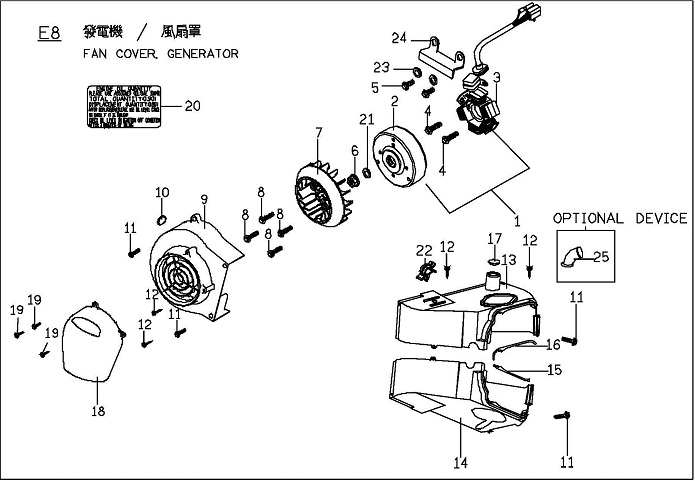

Page 8 Fan Cover, Generator
Genuine Blur Fan Cover Generator
Genuine Blur Fan Cover Generator Parts
No. Part No. Q'TY PART NAME SPECIFICATION
1 C52210000001 1 DC GENERATOR ASSY M2-150
2 C52210100001 1 FLYWHEEL COMP M2-150
3 C2221020000 1 STATOR COMP
4 90180602000 2 HEXAGON FLANGE BOLT
5 90190501201 2 HEXAGON FLANGE BOLT
6 92041200000 1 HEXAGON FLANGE NUT
7 C1043001000 1 FAN
8 90190601204 4 HEXAGON FLANGE BOLT
9 C1042001000 1 FAN COVER
10 C1042030000 1 RUBBER PLUG
11 90180602000 4 HEXAGON FLANGE BOLT
12 90130501400 4 CR PAN HD.TAPPING SCREW
13 C50422110001 1 COOLING COWL(2) M2-150
14 C5042102000 1 COOLING COWL(1) M2-150
15 C1042120000 1 SEAL,COOLING HOOD(1)
16 C1042220000 1 SEAL,COOLING HOOD(2)
17 C1701260000 1 RUBBER PLUG
18 C1042242000 1 FAN COVER'S COVER
19 90110401600 3 CR PAN HD.TAPPING SCREW
20 C16031300001 1 OIL NOTICE LABEL (ENGLISH)
21 92141200005 1 PLAIN WASHER
22 C1701290000 1 PLASTIC LOCKER
23 92110500000 2 PLAIN WASHER
24 C1706640000 1 ACG PLATE
25 C1042270000 1 AIR PIPE OPTIONAL FOR FROZEN AREA

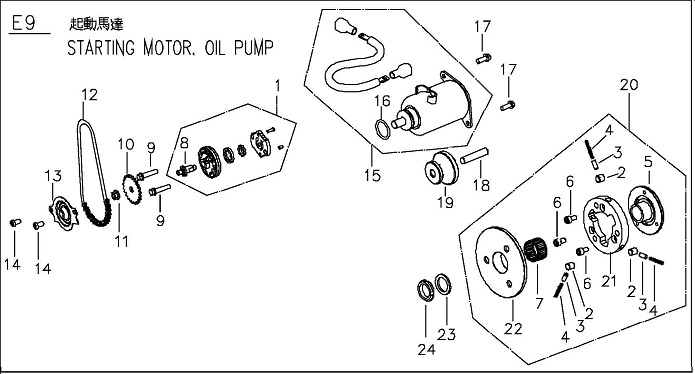

Page 9 Starting Motor Oil Pump
Genuine Blur Starting Motor Oil Pump Parts
Genuine Blur Starting Motor Oil Pump Parts
No. Part No. Q’TY PART NAME REMARK
1 C1081000000 1 OIL PUMP ASSY
2 C1243030000 3 ROLLER ONE WAY CLUTCH
3 C1243020000 3 COP,ROLLER SPRING
4 G1243010000 3 COMPRESS SPRING
5 C12430500001 1 COVER CLUTCH OUTER
6 90210801000 3 INNER HEX BOLT
7 96590283200 1 NEEDLE BEARING
8 C1081070000 1 SHAFT,OIL PUMP
9 90190602700 2 HEXAGON FLANGE BOLT
10 C1081030000 1 SPRKT OIL PUMP DRIVEN
11 92040600000 1 HEXAGON FLANGE BOLT
12 C1081220000 1 CHAIN,OIL PUMP
13 C1081230000 1 SEPARATER OIL
14 E1681030000 2 WITH WASHER HEX BOLT
15 C1241000000 1 START MOOT COMP.
16 95512400002 1 O RING
17 90190601601 2 HEXAGON FLANGE BOLT
18 C1242040000 1 SHAFT,STARTET REDUCTION GEAR
19 C1242010000 1 GEAR,STARTER REOUCTION
20 C12430000001 1 ONE WAY CLUTCH ASSY.
21 NA 1 ONE WAY CLUTCH COMP.
22 C1244000000 1 GEAR COMP.STARTING CLUTCH
23 92142200000 1 PLAIN WASHER
24 C1243060000 1 NUT LOCK

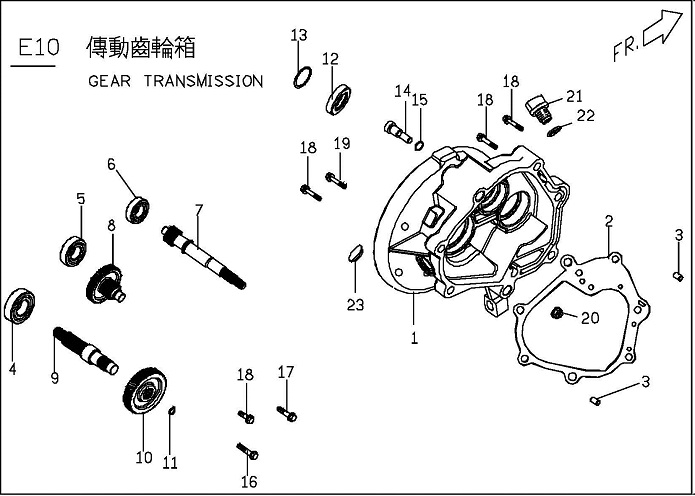

Page 10 Gear Transmission
Genuine Blur Gear Transmission
Genuine Blur Gear Transmission Parts
No. Part No. Q’TY PART NAME REMARK
1 C2141011000 1 TRANSMISSION COVER
2 C2141021000 1 TRANSMISSION COVER GASKET
3 93541001401 2 LOCK PIN
4 96510630100 1 BALL BEARING
5 96510600200 1 BALL BEARING
6 96530622200 1 BALL BEARING.DOUBLE SEALED
7 C3141100000 1 DRIVE SHAFT M2-150
8 C31412000001 1 IDLE GEAR COMP. M2-150
9 C11414110001 1 AXLE DRIVE
10 C11413100003 1 FINAL GEAR M2-150
11 92172000000 1 RETAINING RING C TYPE
12 95572742702 1 OIL SEAL TC TYPE
13 92165000000 1 RETAINING RING C TYPE
14 M2407430000 1 PIVOT REAR BK.SHDE
15 95510800000 1 O RING
16 90190805001 1 HEXAGON FLANGE BOLT
17 90190804501 1 HEXAGON FLANGE BOLT
18 90190804003 4 HEXAGON FLANGE BOLT
19 90190802600 1 HEXAGON FLANGE BOLT
20 92060800000 1 HEXAGON FLANGE NUT
21 P1062150000 1 OIL BOLT
22 95511300001 1 O-RING
23 M2701070000 1 RUBBER PLUG

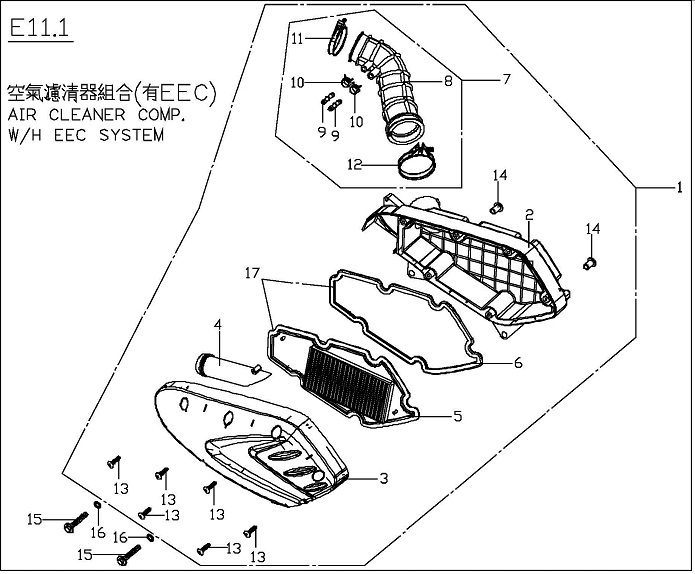

Page 11 Air Cleaner Complete
Genuine Blur Air Cleaner Complete
Genuine Blur Air Cleaner Complete
No. Part No. Q’TY PART NAME REMARK
1 M22620010002 1 AIR CLEAN ASSEMBLY M2-150
2 NA 1 AIR CLEANER BODY
3 M2262020000 1 AIR CLEANER COVER
4 M2262060000 1 INDUCT PIPE
5 M2262030000 1 ELEMENT, AIR CLEANER
6 M2262040000 1 PACKING
8 M2262050000 1 OUTLET PIPE M2-150
9 M2262360000 2 2 WAY CONNECTOR
10 92221000001 2 PLAIN CLIP
11 M2262110000 1 CLIP
12 M2262380000 1 CLIP
13 90150502500 6 TAPPING SCREW
14 NE262060000 2 BUSH
15 90190603000 2 HEXAGON FLANGE BOLT
16 92140600005 2 PLAIN WASHER
17 M2262070000 1 ELEMENT & PACKING ASSY.

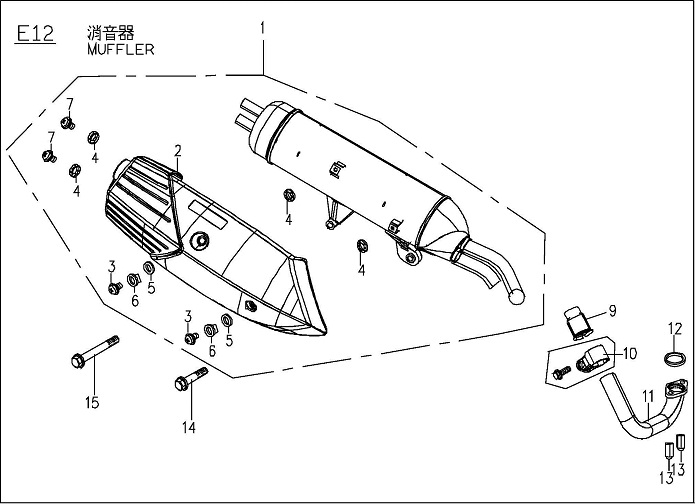

Page 12 Muffler
Genuine Blur Muffler
Genuine Blur Muffler Parts
No. Part No. Q’TY PART NAME REMARK
1 C52815010003 1 MUFFLER ASSEMBLY W/O CATALYST
2 M22810100003 1 HEAT PROTECTOR NO WORD
3 90050602000 2 C-R PAN HD MACHINE SCREW
4 92140600015 4 PACKING
5 C328A040000 2 CIRCLET
6 C328A020000 2 INNER SPACER
7 90050601000 2 C-R PAN HD MACHINE SCREW
9 C5281070000 1 SEALING BUSH
10 C5281081000 1 CONNECTOR ASSY.
11 F3281100000 1 FRONT SECTION, MUFFLER
12 E9281020000 1 GASKET, MUFFLER
13 92050800000 2 HEXAGON CASTLE NUT
14 90191004501 1 HEXAGON FLANGE BOLT
15 90191008500 1 HEXAGON FLANGE BOLT

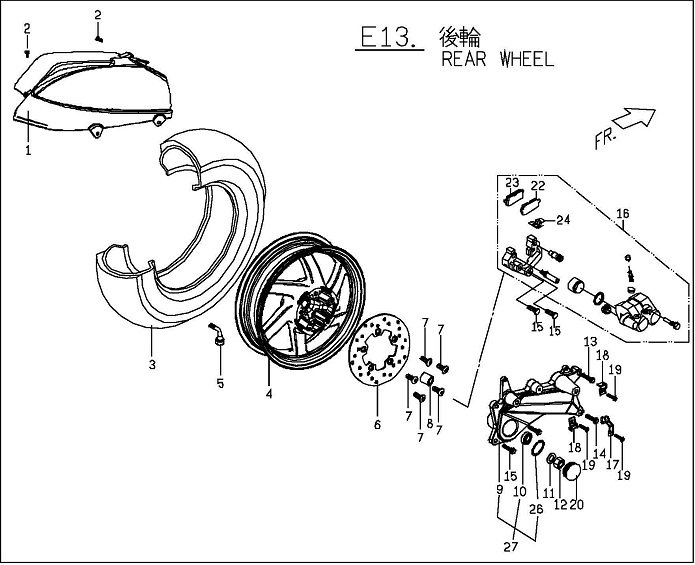

Page 13 Rear Wheel
Genuine Blur Rear Wheel
Genuine Blur Rear Wheel Parts
No. Part No. Q’TY PART NAME REMARK
1 M2634000650 1 REAR FENDER
2 90130501400 2 CR PAN HD.TAPPING SCREW
3 M240G320000 1 REAR TIRE after-service part
4 M24061012R00 1 REAR WHEEL RIM ORANGE
5 P140B330000 1 VALVE
6 M2406800000 1 REAR BRAKE DISK
7 C1403510000 5 SCREW, FR BRAKE DISK(M8*1.25P*24L)
8 M2406840000 1 BUSH
9 M2406833000 1 REAR ENGINE BRACKET
10 96530600300 1 BALL BEARING, DOUBLE SEALED
11 92141600002 1 WASHER
12 92011600000 1 U TYPE SPRING NUT
13 90190804501 1 HEXAGON FLANGE BOLT
14 90190804501 1 HEXAGON FLANGE BOLT
15 90190802300 2 HEXAGON FLANGE BOLT
16 M24066027705 1 REAR BRAKE CALIPER
17 M2403720000 1 BRAKE TUBE CLAMP (B)
18 M2403710000 2 BRAKE TUBE CLAMP (A)
19 90190602002 3 HEXAGON FLANGE BOLT
20 M2701050000 1 RUBBER PLUG
22 M240F1500005 1 INNER PAD
23 M240F1600005 1 OUTTER PAD
24 M240F0800005 1 YOKE
25 M2403701000 1 REAR BRAKE HOSE
26 92163500000 1 C CLIP
27 M2406823000 1 REAR ENGINE BRACKET ASSY.

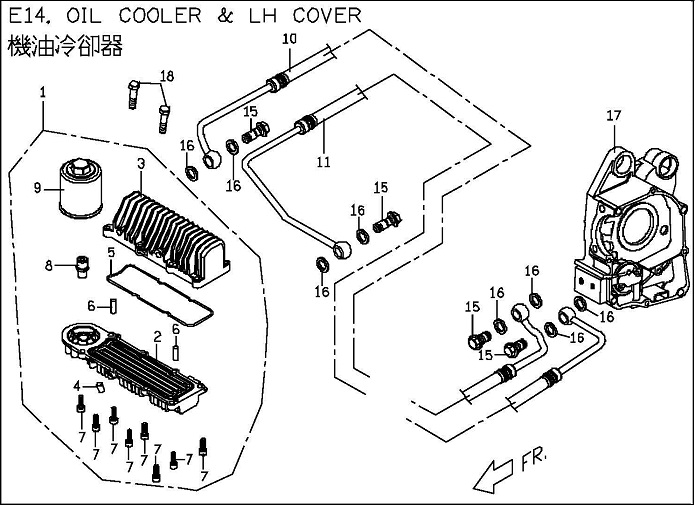

Page 14 Oil Cooler & Left Cover
Genuine Blur Oil Cooler and Left Cover
Genuine Blur Oil Cooler and Left Cover Parts
No. Part No. Q'TY PART NAME REMARK
1 C5083010000 1 OIL COOLER ASSY.
2 C5083020000 1 RADIATOR, UPPER
3 C5083030000 1 RADIATOR, LOWER
4 G1061070000 1 OIL PLUG
5 C5083040000 1 OIL SEAL
6 93560401000 2 LOCK PIN
7 90210601800 8 HEXAGON SOCKET HD. CAP SCREW
8 C5083080000 1 OIL FILTER JOINT
9 C1082020000 1 OIL FILTER
10 F30830510000 1 OIL COOLER PIPE(1)
11 F30830610000 1 OIL COOLER PIPE(2)
15 C5083070000 4 OIL PASS BOLT
16 92141200006 8 PLAIN WASHER
17 C50610000001S 1 RH CRANKCASE ASSY. M2-150
18 90190807500 2 HEXAGON FLANGE BOLT

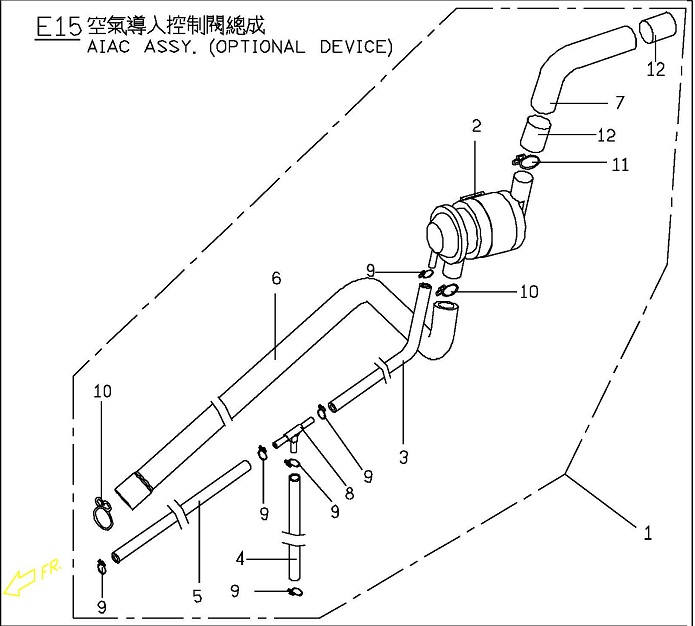

Page 15 AIAC Assembly
Genuine Blur AIAC Assembly
Genuine Blur AIAC Assembly Parts
No. Part No. Q’TY PART NAME REMARK
1 M2286301000 1 AIAC SYSTEM
2 P62862100001 1 REED VALVE ASSY.
3 M2286240000 1 VACUUM PIPE (A)
4 C1286250000 1 VACUUM PIPE (B)
5 M2286260000 1 VACUUM PIPE (C)
6 M2286271000 1 BREATHING PIPE (A)
7 P6286270000 1 BREATHING PIPE (B)
8 C1286290000 1 3 WAY CONNECTOR
9 92200700000 5 CLIP
12 C1286310000 2 SPONGE

Page 16 Cover Upper and Lower Handlebar, Sunplate
Genuine Blur Cover Upper and Lower Handle Bar and Sunplate
Genuine Blur Cover Upper and Lower Handlebar and Sunplate Parts
No. Part No. Q’TY PART NAME REMARK
1 M26130002R0 1 HANDLE COVER UPER ORANGE
2 M2614001650 1 HANDLE COVER LOWER
3 M26120026000 1 HANDLE BAR ASSY.
4 M2613020000 1 AGAINST SUN PLATE
5 90110401200 11 CR PAN HD TAPPING SCREW(M4*12L)
6 90191005002 1 HEXAGON FLANGE BOLT (M10*1.25P
7 C1612011000 1 PLAIN RING
8 92061000001 2 HEXAGON LOCK NUT (M10*1.25P)
9 90040601400 2 CR PAN HD MACHINE SCREW(M6*14L
10 92140600005 2 WASHER (6.4D*13D*1T)

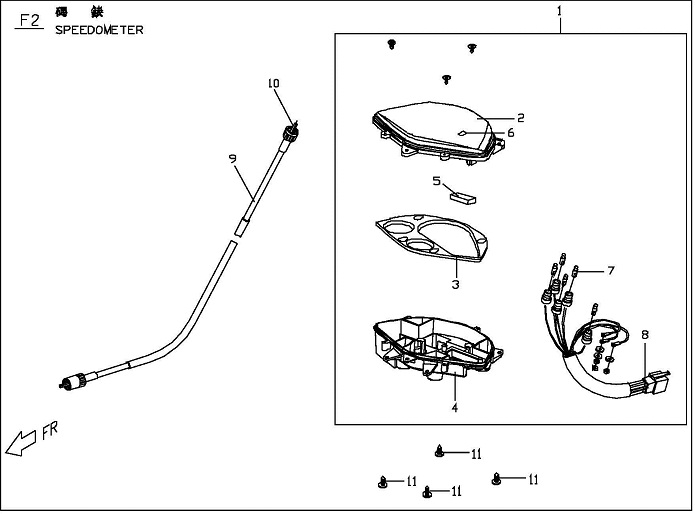

Page 17 Speedometer
Genuine Blur Speedometer Parts
Genuine Blur Speedometer Parts
No. Part No. Q’TY PART NAME REMARK
1 M2561000000B 1 SPEEDMETER ASSY.
2 M256A020000 1 LENS
3 M256A070000 1 DECORATED PLATE
4 NA 1 BASE
5 M256A040000 1 DIGITAL CLOCK
6 M256A050000 1 ADJUSTING BUTTON ASSY.
7 M256A080000 6 BULB 1.7W
8 M256A060000 1 CONNECTING WIRE
9 M2544000000 1 SPEED METER CABLE ASSY
10 M254D060000 1 INNER WIRE
11 90110401200 4 CR PAN HD TAPPING SCREW(M4*12L)

Page 18 Cable, Switch, Back Mirror
Genuine Blur Cable, Switch, and Mirror
Genuine Blur Cable, Switch, and Mirror Parts
No. Part No. Q’TY PART NAME REMARK
1 P261F010000 1 LH BACK MIRROR
2 M2546000000 1 HANDLEBAR SWITCH ASSY, LH
6 C254F0300005 1 CASE,SWITCH UNDER 2 ASSY.
7 M254F020000 1 CASE,SWITCH UNDER 1
10 M240C190000 1 LEVER,LH BRAKE
11 M25480300000 1 STOP SWITCH COMP
12 P154F390000 1 SCREW,PAN HEAD
13 P154F400000 1 SCREW,PAN HEAD
14 M24030020000 1 MASTER CYLINDER, FR BRAKE
16 P140C130000 2 SCREW
17 P140C120000 1 CAP,RESERVOIR
18 P140C110000 2 DIAPHRAGM,RESERVOIR
19 P140C240000 2 BRACKET,MASTER CYLINDER
20 P1402500000 2 HEX SOCKET HEAD BOLT
21 P140C220000 2 BOLT
22 P140C230000 2 FLANGE NUT
23 M240C190000 1 LEVER,RH BRAKE
24 M25480300000 1 SWITCH COMP
25 P25480000001 1 SWITCH ASSY.RH HANDLEBAR
26 P254H0100001 1 CASE,SWITCH UNDER 2 ASSY.
27 C25410000001 1 GRIP ASSY, LH
28 C25420000001 1 GRIP ASSY, RH
29 P154H020000 1 CASE,SWITCH UNDER 1
30 P154F400000 1 C-R ROUND HD TAPPING
31 P154F390000 1 C-R ROUND HD TAPPING
32 M2403701000 1 REAR BRAKING TUBE
33 P14038110000 1 JOINT BOLT,BRAKE HOSE
34 92141000002 4 PLAIN WASHER
35 M2544600000 1 THROTTLE CABLE
36 90040501200 1 CR PAN HD MACHINE SCREW(M5*12L)
37 P261F020000 1 RH BACK MIRROR
38 P2616000000 1 BACK MIRROR COMP
39 M24063030000 1 REAR BRAKING MASTER CYLINDER
40 M24036010000 1 FRONT BRAKE TUBE

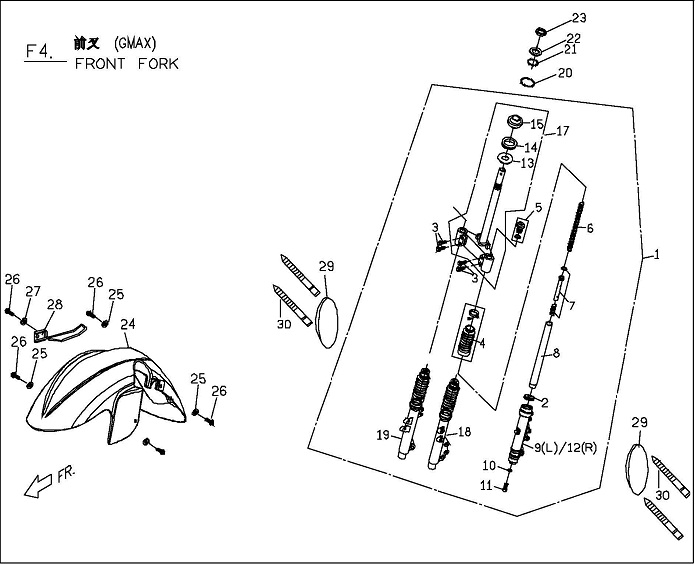

Page 19 Front Fork
Genuine Blur Front Fork
Genuine Blur Front Fork Parts
No. Part No. Q’TY PART NAME REMARK
1 M2443002720 1 FRONT FORK ASSY
2 C144C160000 2 OIL SEAL
3 C144C030000 4 HEXAGON BOLT
4 C144C040000 2 BOOT
5 C144C050000 2 BOLT ASSY.
6 M244C061000 2 SPRING, FRONT FORK
8 C144C080000 2 INNER.TUBE COMP
10 C144C100000 2 PLAIN WASHER
11 C144C110000 2 HEXAGON BOLT
13 C144C130000 1 GASKET
14 P244C040000 1 COVER
15 C144C150000 1 INNER BEARING CAGE
17 M244C200000 1 UNDER BRACKET,COMP.
18 No longer sold separately 1 TUBE COMP. LH
19 No longer sold separately 1 TUBE COMP. RH
20 99010600000 19 BEARING BALL(1/4")
21 99010400000 26 BEARING BALL
22 E1444050000 1 UPPER RING-SHAPE NUT
23 E1444040000 1 STEERING SHAFT LOCK NUT
24 M26320016B0 1 FR FENDER BLACK
25 92140600018 5 PLAIN WASHER
26 90040601600 6 CR PAN HD MACHINE SCREW
27 92110600000 5 SPRING WASHER
28 M2544020000 1 SPEEDMETER CABLE CLIP COMP (R)
29 P26690000001 2 REFLECTOR
30 E1701031000 4 TIE BAND

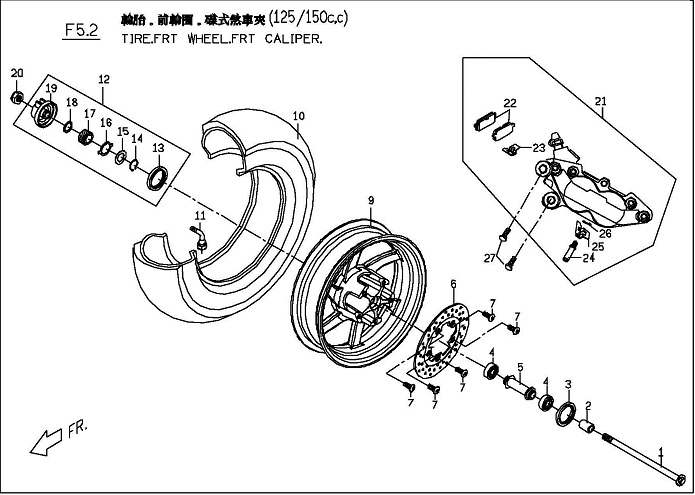

Page 20 Tire, Front Wheel, Front Caliper
Genuine Blur Tire, Front Wheel, and Front Caliper Parts
Genuine Blur Tire, Front Wheel, and Front Caliper Parts
No. Part No. Q’TY PART NAME REMARK
1 C14025010000 1 AXLE , FR WHEEL
2 P1401010000 1 SPACER
3 95572235700 1 OIL SEAL, TC TYPE
4 96520620100 2 ONE SHIELD BALL BEARING
5 P9402401000 1 SPACER
6 M2403501000 1 BRAKING DISK
7 C1403510000 5 SCREW, FR BRAKE DISK(M8*1.25P*24L)
9 M24011012R00 1 FRT WHEEL ORANGE
10 M240B320000 1 FRT TIRE after-service part
11 P140B330000 1 VAVLE
12 P1566002000 1 METER GEAR ASSY
13 95574052600 1 OIL SEAL
14 92171800000 1 C CLIP
15 92141900001 1 PLAIN WASHER
16 P1566050000 1 PAD
17 P1566040000 1 SPEEDOMETER GEAR
18 92141900002 1 PLAIN WASHER
20 92061200001 1 LOCK NUT(M12*1.25P)
21 M2403301000 1 BRAKE CALIPER, FRONT
22 M240C010000 1 PAD ASSY.
23 M240C020000 1 YOKE SPRING
24 M240C040000 1 SPRING PIN
26 M240C030000 1 CLIP
27 90191004003 2 HEXAGON FLANGE BOLT (M10*40L)

Page 21 Windshield, Front Inner Cover, Front Head Light
Genuine Blur Windshield, Front Inner Cover, and Front Headlight
Genuine Blur Windshield, Front Inner Cover, and Front Headlight Parts
No. Part No. Q’TY PART NAME REMARK
1 M26210006B0 1 WIND SHIELD BLACK
2 90040601400 2 CR PAN HD MACHINE SCREW(M6*14L
3 M2621010690 1 WINSHIELD,OUTER COVER BLACK
4 92370500003 2 U TYPE SPRING NUT
5 90130501400 9 CR TRUSS HD TAPPING SCREW (M5*16L)
6 M262C0226500 1 INNER COVER,FRT
7 90130501400 4 CR ROUND HD TAPPING SCREW (M5*14L)
8 M2623010650 1 COVER,VIN
9 M2623020650 1 PANEL,FRT.INNER COVER
10 M2701010000 2 PUSH RIVET
11 M26610000002 1 HEAD LIGHT ASSY. SAE
12 98231230001 2 POSITION LAMP (INSIDE, 3W) SAE
13 M266A0200002 1 DUMMY HEADLAMP ASSY. SAE
14 98151235351 1 HEADLAMP BULB (35/35W) SAE
15 98231230001 2 POSITION LAMP (OUTSIDE,3W) SAE
16 M266A0100002 1 WIRE ASSY. SAE
17 90130501400 6 CR ROUND HD TAPPING SCREW (M5*14L)
18 92140600005 1 WASHER (6.4D*13D*1T)

Pages 22 Step Floor, Step Plate
Genuine Blur Step Floor and Step Plate
Genuine Blur Step Floor and Step Plate Parts
No. Part No. Q’TY PART NAME REMARK
1 M2624001650 1 STEP FLOOR,LH
2 M262D001650 1 STEP FLOOR,RH
3 M26240112R0 1 KEEL COVER,LH ORANGE
4 M262D0112R0 1 KEEL COVER,RH ORANGE
5 M2624020650 1 PANEL COVER,PEDAL LEVER(LH)
6 M262D020650 1 PANEL COVER,PEDAL LEVER(RH)
7 M2624060650 1 LEFT HANGER COVER
8 M2624070650 1 RIGHT HANGER COVER
9 90040601400 4 CR PAN HD MACHINE SCREW(M6*14L
10 90040601400 8 CR PAN HD MACHINE SCREW(M6*14L
11 90210602001 4 HEXAGON SCOKET SCREW
12 92370500003 2 U TYPE SPRING NUT
13 M2624500000 1 MAT,STEP FLOOR(LH)
14 M262D500000 1 MAT,STEP FLOOR(RH)
15 90110401200 4 CR PAN HD TAPPING SCREW(M4*12L)
16 92140600005 4 WASHER (6.4D*13D*1T)
17 92140600018 4 WASHER
18 90130501400 2 CR TRUSS HD TAPPING SCREW (M5*16L)

Page 22 Front Lower Cover, Step Floor Lower Cover, Front Fender
Genuine Blur Front Lower Cover, Step Floor Lower Cover, Front Fender
Genuine Blur Front Lower Cover, Step Floor Lower Cover, Front Fender
No. Part No. Q’TY PART NAME REMARK
1 M26263006B0 1 LOWER COVER(LEFT) BLACK
2 M26265016B00 1 LOWER COVER(RIGHT) BLACK
3 M26213006B0 1 TURN SIGNAL FRONT ASSY,INNER COVER(LH) BLACK
4 M262A3006B0 1 TURN SIGNAL FRONT ASSY,INNER COVER(RH) BLACK
5 M2633001650 1 LOWER COVER,FRONT
6 92370500003 6 U TYPE SPRING NUT
7 90130501400 2 CR TRUSS HD TAPPING SCREW (M5*16L)
8 90130501400 6 CR ROUND HD TAPPING SCREW (M5*14L)
9 M266C1210001 1 SIGNAL LAMP ASSY., LH E-MARK,EURO
10 M266C020000 1 LAMP COVER, LH
12 M266C010000 1 SIGNAL LAMP BASE, LH
13 98241216001 2 BULB (WHITE) 16W,E-MARK
14 M266C0600001 1 CONNECTING WIRE, LH
15 M266D1210001 1 TURN SIGNAL FRONT COMP,.RH E-MARK,EURO
16 M266D020000 1 LAMP COVER, RH
18 M266D010000 1 SIGNAL LAMP BASE, RH
19 M266D0600001 1 CONNECTING WIRE, RH E-MARK,EURO
20 M266C050000 4 TAPPING SCREW
21 M2626030650 1 COOLING COVER M2-125/M2-150
22 90130501400 6 CR PAN HD TAPPING SCREW(M5*14L)
23 M2701090000 1 ANTI-WATER RUBBER
24 E9666080000 5 FIXTURE CLAMP

Page 23 Body Cover, Middle Cover, Rear Luggage, Body Lower Cover
Genuine Blur Body Cover, Middle Cover, Rear Luggage, Body Lower Cover
Genuine Blur Body Cover, Middle Cover, Rear Luggage, Body Lower Cover Parts
No. Part No. Q’TY PART NAME REMARK
1 M26250116500 1 FUEL TANK COVER,FR.
2 M26253006B0 1 BODY COVER,LH BLACK
3 M26255006B0 1 BODY COVER,RH BLACK
4 M2625020650 1 BODY COVER,LOWER
5 M26760002R0 1 RR LUGGAGE BRACKET ORANGE
6 90210803504 3 HEXAGON SOCKET HEAD BOLT
7 92140800010 3 WASHER (8.4D*17D*1.6T)
8 90130501400 2 CR PAN HD MACHINE SCREW(M6*14L
9 90040601400 1 CR PAN HD MACHINE SCREW(M6*14L
10 90130501400 1 CR ROUND HD TAPPING SCREW (M5*14L)
11 M2701020000 1 WATER PROTECTIVE RUBBER M2-125/M2-150
12 M25213010000 1 TANK COVER W/H EEC SYSTEM
13 M2521320000 1 TANK ,INNER COVER
14 M25213110000 1 TANK COVER LEVER CABLE
15 92140600005 2 WASHER (6.4D*13D*1T)
16 90190601500 3 HEXAGON FLANGE BOLT (M6*15L)
17 90040501200 1 CR PAN HD MACHINE SCREW(M5*12L)

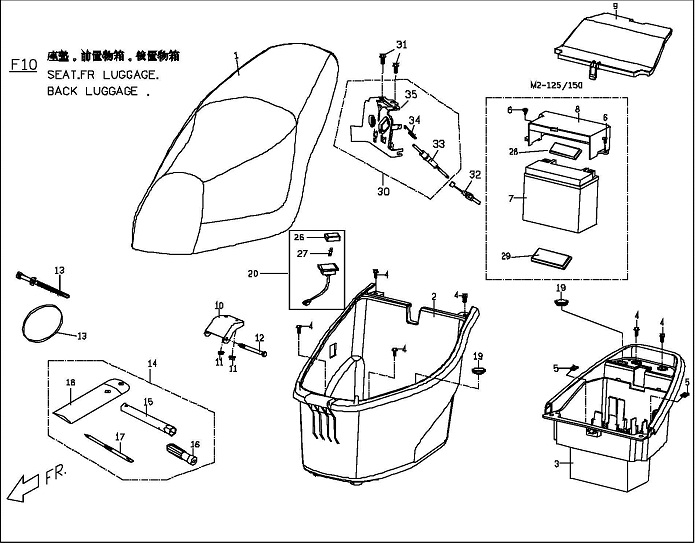

Page 24 Seat, Front Luggage, Back Luggage
Genuine Blur Seat, Front Luggage, Back Luggage
Genuine Blur Seat, Front Luggage, Back Luggage Parts
No. Part No. Q’TY PART NAME REMARK
1 M26710010005 1 SEAT COMP. GENUINE
2 M2681001000 1 HELMET CASE ASSY., FRT SECTION M2-125/M2-150
3 M26810110000 1 HELMET CASE ASSY., REAR SECTION M2-125/M2-150
4 90200602001 6 HEXAGON FLANGE BOLT (M6*1.0P)
5 92370500003 2 U TYPE SPRING NUT
6 90040601400 2 CR PAN HD MACHINE SCREW(M6*14L M2-125/M2-150
7 C2583000000 1 BATTERY(7L) M2-125/M2-150
8 M2624050650 1 BATTERY COVER M2-125/M2-150
9 M2624030650 1 COVER,ELECTRICAL UNITS
10 C1681060000 1 BRACKET, LUGGAGE
11 92040600000 2 HEXAGON FLANGE NUT (M6*1.0P)
12 C1681070000 1 SPECIAL BOLT
13 M2701040000 1 REMOVEABLE CABLE TIE
14 P6706540000 1 TOOL KIT M2-125/M2-150
19 C1042030000 2 RUBBER PLUG
20 M2681020000 1 LUGGAGE LIGHTING LAMP
26 M268A010000 1 COVER,LUGGAGE LIGHTING LAMP
27 M268A040000 1 BULB
28 M25831000000 1 DAMPER, BATTERY M2-125/M2-150
29 M25831000000 1 DAMPER, BATTERY M2-125/M2-150
30 M2671301000 1 SEATLOCK ASSY
31 90040601400 2 CR PAN HD MACHINE SCREW(M6*14L
32 C26711210000 1 SEAT LOCK LEVER CABLE
33 M267A320000 1 LIGTING SENSOR
34 90110401600 1 TAPPING SCREW

Page 25 License Plate, Reflector, and Back Lamp
Genuine Blur License Plate, Reflector, and Back Lamp
Genuine Blur License Plate, Reflector, and Back Lamp Parts
No. Part No. Q’TY PART NAME REMARK
1 M2636001650 1 LICENCE PLATE
2 C5669000000 1 REFLECTOR DOT
3 92140500014 1 PLAIN WASHER
4 92040600000 2 HEXAGON FLANGE NUT (M6*1.0P)
5 C16690000001 2 REFLECTOR SIDE RED
6 M26660000001 1 REAR LAMP ASSY. SAE, EURO
7 M266F010000 1 COVER SAE, EURO
9 98311221051 1 BRAKING BULB SAE, EURO
10 98241216001 2 SIGNAL LAMP (16W) SAE, EURO
11 M266F070000 2 TAPPING SCREW SAE, EURO
15 90110401200 1 CR PAN HD TAPPING SCREW(M4*12L)
16 92040600000 2 HEXAGON FLANGE NUT (M6*1.0P)
17 90040601400 2 CR PAN HD MACHINE SCREW(M6*14L
18 92140600005 2 WASHER (6.4D*13D*1T)
19 M2701010000 2 PUSH RIVET
20 92020500000 1 HEXAGON NUT (M5*0.8P)
21 P2635001650 1 LOWER MUD PROTECTOR, REAR
22 90110401200 2 CR PAN HD TAPPING SCREW(M4*12L)

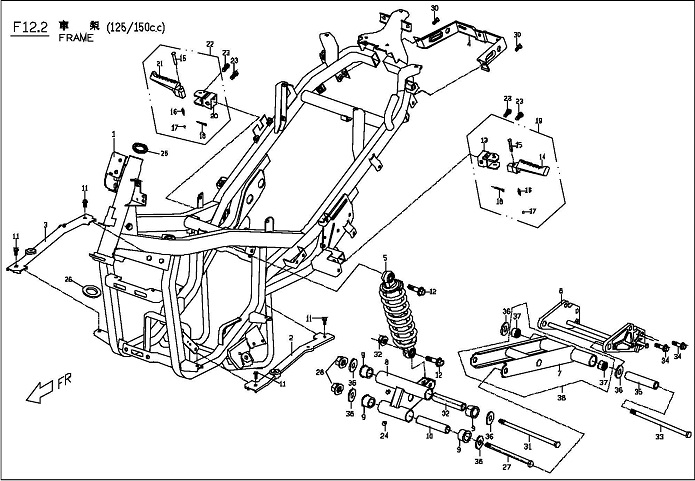

Page 26 Frame
Genuine Blur Frame
Genuine Blur Frame Parts
No. Part No. Q’TY PART NAME REMARK
1 No longer sold due to liability reasons 1 FRAME ASSY M2-125/M2-150
2 M2421420000 1 SUPPORTING HOLDER ,STEPFLOOR(LH)
3 M242A420000 1 SUPPORTING HOLDER ,STEPFLOOR(RH)
4 M2421410000 1 LICENCE PLATE , LINK PLATE
5 M2481002000 1 CUSHION ASSY, RR M2-125/M2-150
6 M2451031600 1 ENGINE HANGER, LOWER M2-125/M2-150
8 M2451011600 1 TRIANGLE SWING ARM M2-125/M2-150
9 X0481130000 6 BUSH,RR AXLE BRACKET
10 M2451050000 1 SPACER TUBE B
11 90190601500 1 HEXAGON FLANGE BOLT (M6*15L)
12 90191004000 2 HEXAGON FLANGE BOLT (M10*1.25P*40L)
13 M2463010000 1 BACKSEAT PEDAL LEVER COMP
14 E1463020000 1 PEDAL LEVER, LH
15 E1463040000 2 LOCK PIN
16 E1463050000 2 SPRING
17 99010600000 2 BEARING BALL(1/4")
18 93520201200 2 COTTER PIN
19 M2463020000 1 BACKSEAT PEDAL LEVER COMP (L)
20 M2463010000 1 BACKSEAT PEDAL LEVER COMP
21 E1464020000 1 PEDAL LEVER, RH
22 M2464020000 1 BACKSEAT PEDAL LEVER COMP (R)
23 90190604001 4 HEXAGON FLANGE BOLT (M6*40L)
24 X0481070000 3 GREASE FILLING NUT
25 C1443020000 1 UPPER BEARING CAGE
26 C1443011000 1 LOWER BEARING CAGE
27 90191412500 1 EXAGON FLANGE BOLT
28 92061400000 2 LOCK NUT,FLANGE U TYPE
29 NA 2 AUTOMATIC OILING BUSH
30 90190601500 2 HEXAGON FLANGE BOLT (M6*15L)
31 90191420500 1 EXAGON FLANGE BOLT
32 M2451040000 1 SPACER TUBE A
33 90191422000 1 EXAGON FLANGE BOLT M2-125/M2-150
34 90191002000 4 EXAGON FLANGE BOLT M2-125/M2-150
35 M24510610000 1 SPACER TUBE C M2-125/M2-150
36 X0481140000 6 DUSTPROOF
37 96550202600 2 NEEDLE BEARING
38 M24510820000 1 PULL LINKAGE ASSY.

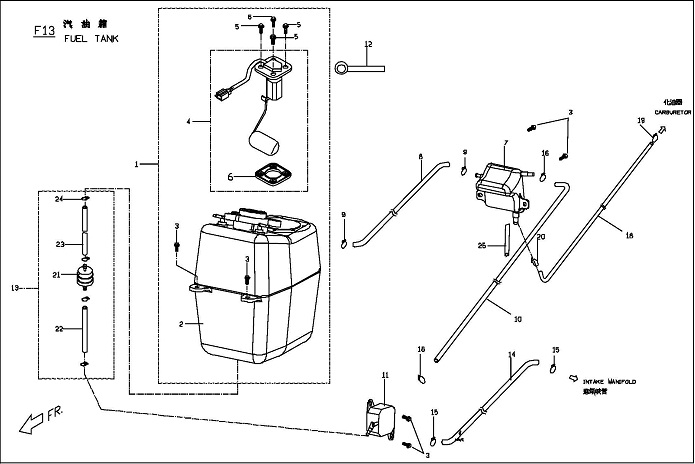

Page 27 Fuel Tank
Genuine Blur Fuel Tank
Genuine Blur Fuel Tank Parts
No. Part No. Q’TY PART NAME REMARK
2 M2521500000 1 FUEL TANK(W/H EEC) W/H EEC
3 90190601500 7 HEXAGON FLANGE BOLT (M6*15L)
4 M2521700000 1 FUEL GUAGE COMP.
5 90200501400 4 HEXAGON FLANGE BOLT
6 C152A090000 1 PACKING, FUL GAUGE
7 M2521600000 1 AD.FUEL TANK
8 M2526040000 1 BACK FUEL HOSE(AD TANK TO TANK)
9 922213000001 2 HOSE CLAMP
10 M2526020000 1 FUEL HOSE(PUMP TO AD. TANK) M2-125/150
11 M2521800000 1 FUEL PUMP COMP M2-125/150
12 ES706020000 1 WIRE CLIP
13 M2521200000 1 FUEL FILTER ASSY M2-125/150
14 M2526010000 1 VACUUM HOSE(PUMP TO INTAKE MANIFOLD) M2-125/150,W/O SAI
15 E1706110000 2 PIPE CLIP
16 E1706110000 2 PIPE CLIP
18 M25260320000 1 FUEL HOSE(AD. TANK TO CARBURETOR) M2-125/150
19 E1706110000 2 PIPE CLIP
20 92211200001 1 HOSE CLAMP
21 P65212100001 1 FUEL FILTER
22 M252A010000 1 FUEL PIPE(FILTER TO PUMP)
23 M252A020000 1 FUEL PIPE(TANK TO FILTER)
24 M252A030000 4 HOSE CLAMP
25 M2521220000 1 COARSE FUEL FILTER

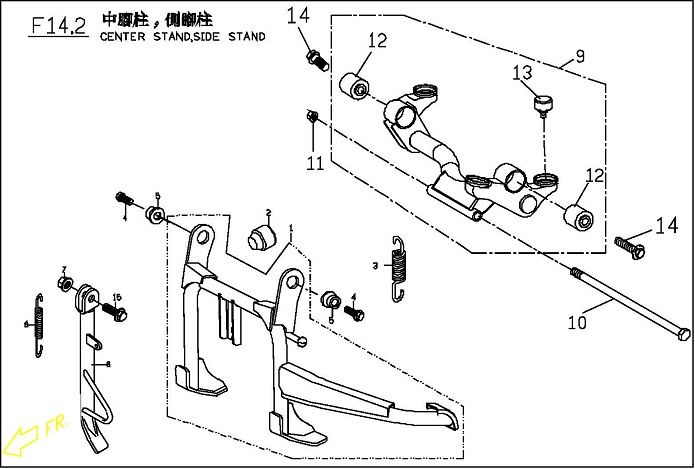

Page 28 Center Stand, Side Stand
Genuine Blur Center Stand, Side Stand
Genuine Blur Center Stand, Side Stand
No. Part No. Q’TY PART NAME REMARK
1 M24610026000 1 CENTER STAND COMP
2 C1701050000 1 CUSHION RUBBER
3 E1461121000 1 CENTER STAND SPRING
4 90191003500 1 HEXAGON FLANGE BOLT (M10*1.25P
5 M24610100000 2 BUSH
6 M2462001600 1 SIDE STAND
7 92061000001 1 U TYPE FLANGE NUT(M10*1.25P)
8 C2462120000 1 SPRING,SIDE STAND
9 M2486002000 1 ENGINE HANGER ASSY.
10 90191018000 1 HEXAGON FLANGE BOLT
11 92061000001 1 U TYPE FLANGE NUT(M10*1.25P)
12 M2486070000 2 RUBBER,DAMPER
13 C14860500001 1 CUSHION RUBBER
14 M2486010000 2 HEXAGON FLANGE BOLT

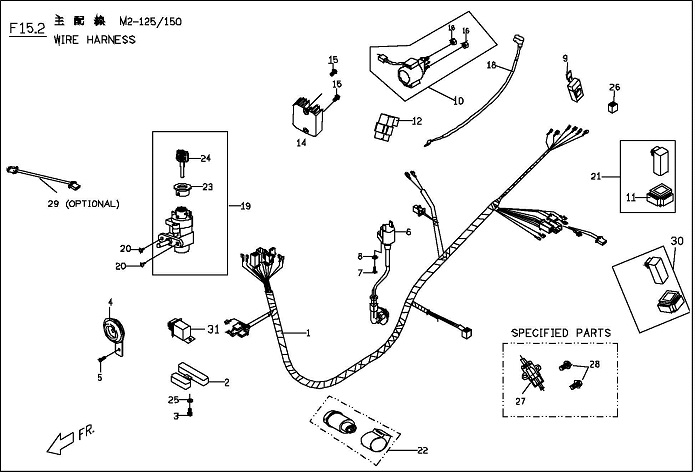

Page 29 Wire Harness
Genuine Blur Wire Harness
Genuine Blur Wire Harness
No. Part No. Q’TY PART NAME REMARK
1 M25816030000 1 WIRE HARNESS , MAIN M2-125/M2-150
2 ES586600000 1 RESISTOR DC LIGHTING
3 90190601500 2 HEXAGON FLANGE BOLT (M6*15L)
4 B5583600000 1 HORN M2-125/M2-150
5 90190801200 1 HEXAGON FLANGE BOLT (M8*12L)
6 M2584600000 1 COIL COMP M2-125/M2-150
7 90070502000 1 CR TRUSS HD MACHINE SCREW(M5*20L)
8 92110500000 1 SPRING LOCK WASHER
9 98701215000 1 FUSE, 15A M2-125/M2-150
11 P1701190000 1 RUBBER BRACKET
12 C1582001000 1 CDI UNIT ASSY. M2-125/M2-150
10 C1581001000 1 STARTER RELAY M2-125/M2-150
14 C2584000000 1 VOL REGULATOR COMP. DC LIGHTING
15 90190601500 1 HEXAGON FLANGE BOLT (M6*15L)
16 92030600004 2 HEXAGON NUT M2-125/M2-150
18 M2583020000 1 BATTERY (+)LINE M2-125/M2-150
19 M25520000000 1 IGNITION SWITCH COMP.
20 90040602003 2 CR TRUSS HD MACHINE SCREW
21 C15825010000 1 HEADLAMP CONTROLLER DC LIGHTING
22 P2586011000 1 FLASHER RELAY ASSY
23 M255B010000 1 KEY INDICATOR ASSY
24 ES55B010000 1 DUMMY KEY
25 92130600000 1 TEETH TYPE WASHER
26 C158A010000 1 DIODE ASSY.
27 M25843000000 1 LUGGAGE LAMP DELAY CONTROLLER
29 M25816110000 1 CONNECTING WIRE, HEADLAMP

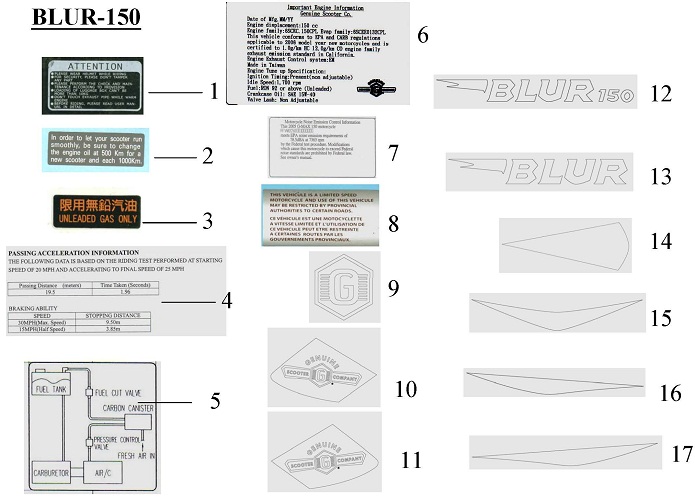

Page 30 Labels
Genuine Blur Labels
Genuine Blur Labels
No. Part No. Q’TY PART NAME REMARK
1 C16030000001 1 NOTICE STICKER
2 C16030100001 1 OIL CHANGE STICKER
3 C1603020000 1 STICKER, FUEL TYPE
4 M2352030000 1 PASSING ACCELERATION INFORMATION
5 P6603010000 2 E.E.C MARK STICKER
6 M26031000000 1 ENGINE INFORMATION STICKER
7 M26030300000 1 NOISE EMISSION CONTROL INFORMATION PAPER
8 C1603070000 1 TIRE INFORMATION PAPER
9 M26012900000 1 G WINSHIELD ORNAMENT STICKER
10 M26013000000 1 SIGNAL LAMP ORNAMENT STICKER,LH
11 M26013100000 1 SIGNAL LAMP ORNAMENT STICKER,RH
12 M26013200000 2 BLUR-BODY COVER STICKER
13 M26013300000 1 BLUR-WINSHIELD STICKER
14 M26013400000 1 FRT FENDER STICKER
15 M26013500000 2 HEAD LIGHT STICKER,UPPER
16 M26013600000 1 LOWER COVER STICKER,LH
17 M26013700000 1 LOWER COVER STICKER,RH

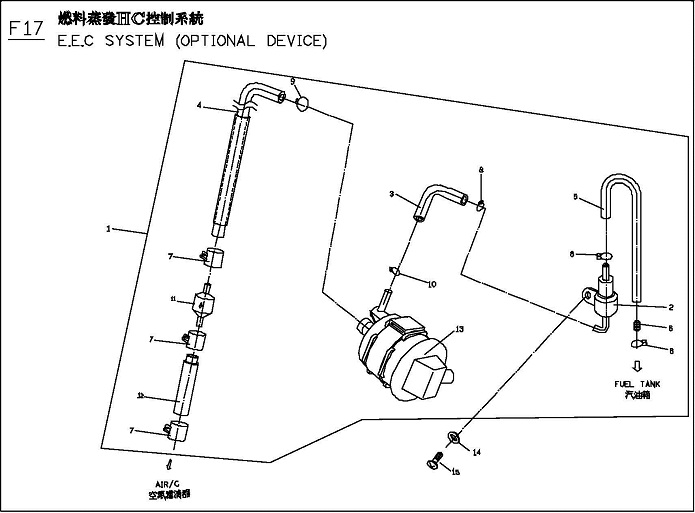

Page 31 EEC System
Genuine Blur EEC System
Genuine Blur E.E.C System
No. Part No. Q’TY PART NAME REMARK
1 M2524000000 1 EEC CONTROL SYSTEM
2 M2524040000 1 FUEL CUT VALVE
3 M2524020000 1 PIPE
4 M2524010000 1 PIPE
5 M2524030000 1 PIPE
6 E9524070000 1 ORIFANE PIPE
7 C152D060000 3 PLATE CLIP
8 P552D080000 4 WIRE CLIP
9 92211300000 1 WIRE CLIP
10 P552D070000 1 WIRE CLIP
11 P6524120000 1 CONTROL VALVE
12 M2524050000 1 PIPE
13 M2524060000 1 CANISTER
14 92140600005 1 WASHER (6.4D*13D*1T)
15 90040602003 2 CR PAN HD MACHINE SCREW(M6*14L


_________________________________________________________

Please note the following changes in our hours:

December 10th:   open  10-4
December 11th:  open  2-6
December 24th:  open 10-2

 December 25th - January 1st: Closed for holidays
_________________________________________________________
Service and Repairs
We are currently accepting most makes and models of gas powered motor scooters for service and repairs. If your scooter is running great and just needs routine maintenance (ex: fluids, tires, drive belt) please call to schedule an appointment and we can do the service while you wait. If your scooter is in need of repairs, please bring it in during regular business hours. Repairs are completed on a first-come, first-served basis. Scooters are accepted only during business hours so please do not leave your scooter outside our building after store hours.

We want you to be thrilled with our service.  If you experience a problem regarding our repairs on your scooter, please bring it back within 30 days so we can make it right.  Vehicles that are not picked up upon completion after 3 business days will be charged storage fees of $10/day unless arrangements are made with management.  After 30 days property will be considered abandoned and sold.
_________________________________________________________
All parts orders should be placed through this website.
For assistance please email us at parts@thescooterlounge.com.
We do not take phone orders.
