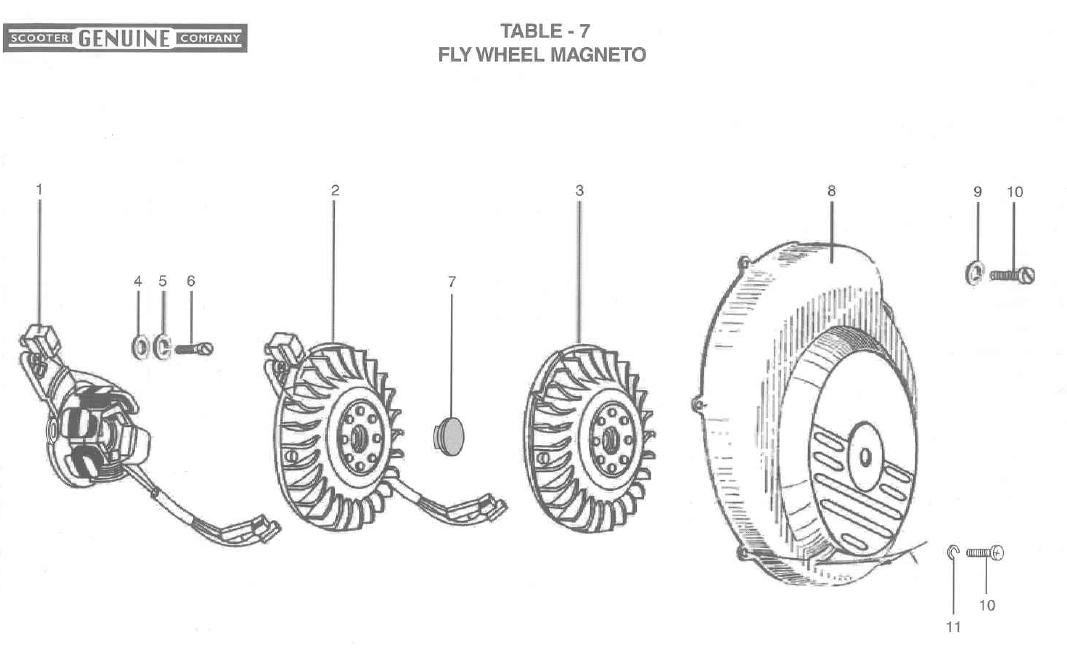

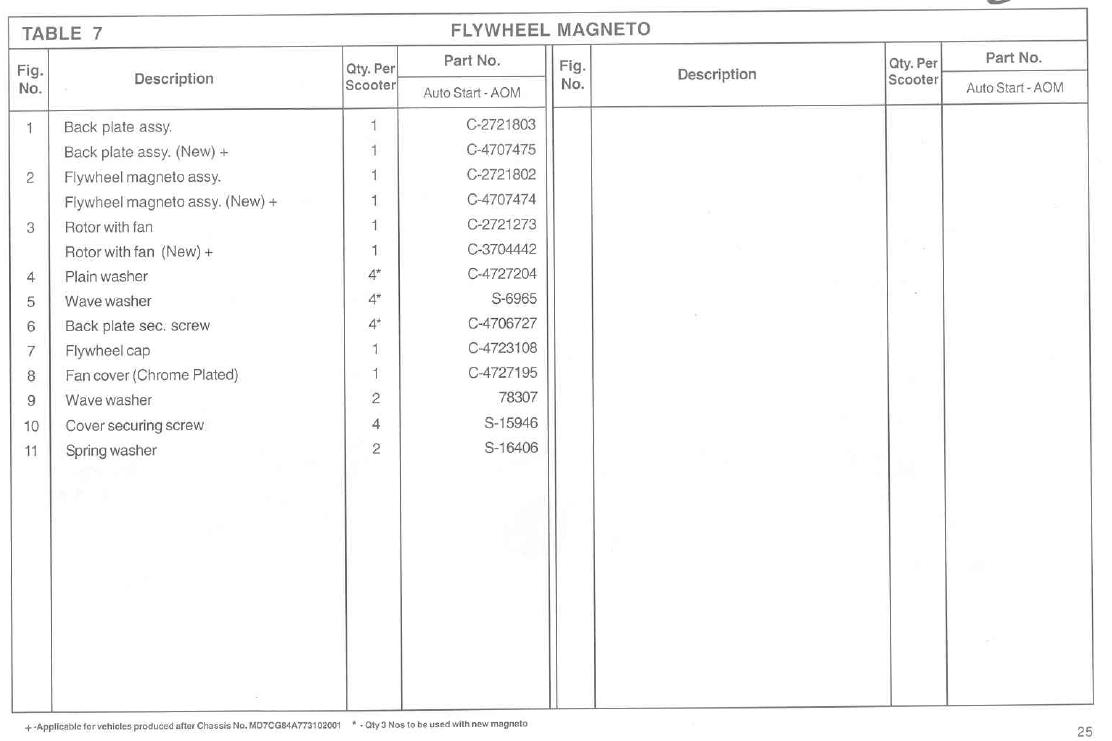

Stella Flywheel Magneto

Genuine Stella Fly Wheel Magneto

Genuine Stella Fly Wheel Magneto Manual

Stator Assy, Stella 2005 and older

Stator Assy, Stella 2005 and older

PLEASE NOTE:  The early Stella stator C-2721803 (for 2005 and older Stellas) has been discontinued, but you can use the original back plate and use the stator from the 4T Stella SF512-0150 in its place.  The wires are the same colors.  The wire connectors just need to be changed to work. And this stator is better than the original.  If you have a 2007 and newer Stella 2T please see part number C-4707475.

Flywheel assy, Stella <2005

Flywheel assy, Stella <2005

Rotor Fan (Flywheel only) Stella <2005

Rotor Fan (Flywheel only) Stella <2005

Washer

Washer

#5 Spring Washer (Stella Flywheel Magneto)

#5 Spring Washer (Stella Flywheel Magneto)

Spring Washer
Screw

Screw

Cover

Cover

Stella Flywheel Cover

Stella Flywheel Cover

Washer, Flywheel Cover

Washer, Flywheel Cover

Screw

Screw

#36 Spring Washer

#36 Spring Washer

Stator Assy, Stella 2007 and newer -> (12V/96W)

Stator Assy, Stella 2007 and newer -> (12V/96W)
