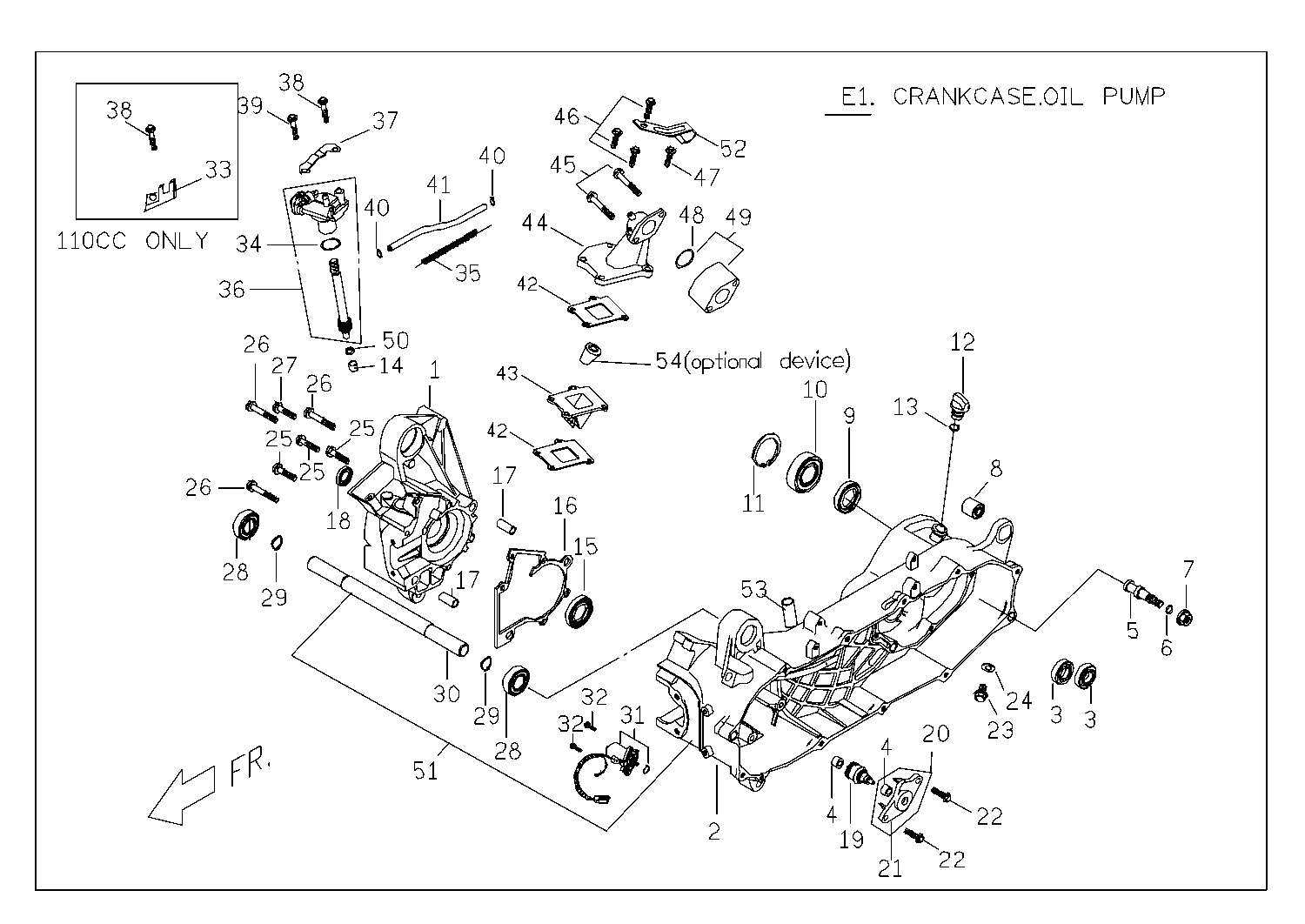

Rattler 110 Crankcase, Oil Pump
Rattler 110 Crankcase
Img Ref # 3 BALL BEARING (SKU: 96510620000 Rattler 110 Crankcase)
Img Ref # 4 BUSH (SKU: E1062130000 Rattler 110 Crankcase)
Img Ref # 6 O RING (SKU: 95510800000 Rattler 110 Crankcase)
Img Ref # 7 HEXAGON FLANGE NUT (SKU: 92060800000 use 92060800002 Rattler 110 Crankcase)
Img Ref # 8 RUBBER BUSH (SKU: P1062020000 Rattler 110 Crankcase)
Img Ref # 9 OIL SEAL, TC TYPE (SKU: 95572540700 Rattler 110 Crankcase)
Img Ref #10 BALL BEARING, DOUBLE SEAL (SKU: 96530620400 Rattler 110 Crankcase)
Img Ref #11 RETAINING, RING, C TYPE (SKU: 92164700000 Rattler 110 Crankcase)
Img Ref #12 OIL BOLT (SKU: P1062150000 Rattler 110 Crankcase)
Img Ref #13 O RING (SKU: 95511300001 Rattler 110 Crankcase)
Img Ref #14 BUSH (SKU: E1061030000 Rattler 110 Crankcase)
Img Ref #15 OIL SEAL, TC TYPE (SKU: 95572038700 Rattler 110 Crankcase)
Img Ref #17 LOCK PIN (SKU: 93541002300 Rattler 110 Crankcase)
Img Ref #18 OIL SEAL, TC TYPE (SKU: 95571525700 Rattler 110 Crankcase)
Img Ref #19 IDLE GEAR COMP, STARTER (SKU: E92420000001 Rattler 110 Crankcase)
Img Ref #20 FIXED PLATE, STARTER COMP. (SKU: P1242111000 Rattler 110 Crankcase)
Img Ref #22 HEXAGON FLANGE BOLT (SKU: 90180602000 use 90190601604 Rattler 110 Crankcase)
Img Ref #23 HEXAGON FLANGE BOLT (SKU: 90190801202 old SKU90190801200 Rattler 110 Crankcase)
Img Ref #24 WASHER (SKU: 92140800001 Rattler 110 Crankcase)
Img Ref #25 HEXAGON FLANGE BOLT (SKU: 90190604500 Rattler 110 Crankcase)
Img Ref #26 HEXAGON FLANGE BOLT (SKU: 90190606000 Rattler 110 Crankcase)
Img Ref #28 BALL BEARING, DOUBLE SEAL (SKU: 96530600300 Rattler 110 Crankcase)
Img Ref #29 RETAINING, RING, C TYPE (SKU: 92171700000 Rattler 110 Crankcase)
Img Ref #30 ENGINE HANGER SHAFT (SKU: P1486020000 Rattler 110 Crankcase)
Img Ref #35 COMPRESION SPRING (SKU: P1706611000 Rattler 110 Crankcase)
Img Ref #36 OIL PUMP ASSY. (SKU: P90810010001 Rattler 110 Crankcase)
Img Ref #38 HEXAGON FLANGE BOLT (SKU: 90190603500 Rattler 110 Crankcase)
Img Ref #39 HEXAGON FLANGE BOLT (SKU: 90190601200 Rattler 110 Crankcase)
Img Ref #42 GASKET, REED VALVE (SKU: P1261021000 Rattler 110 Crankcase)
Img Ref #45 HEXAGON FLANGE BOLT (SKU: 90190602700 Rattler 110 Crankcase)
Img Ref #46 HEXAGON FLANGE BOLT (SKU: 90180602501 old SKU 90180602500 Rattler 110 Crankcase)
Img Ref #48 O RING (SKU: 95512300000 Rattler 110 Crankcase)
Img Ref #49 INSULATOR ASSY., CARB. (SKU: P12613000001 Rattler 110 Crankcase)
Img Ref #50 PLAIN WASHER (SKU: 92140700001 Rattler 110 Crankcase)
Img Ref #52 FIXING CLIP (SKU: P1706400000 Rattler 110 Crankcase)
