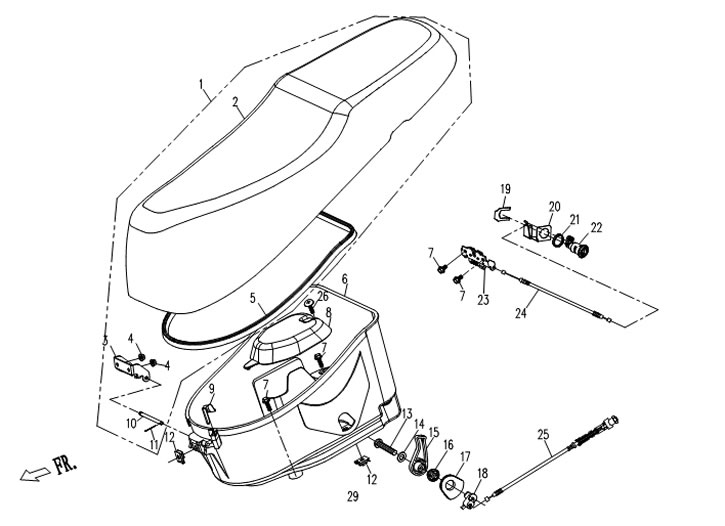

Image Ref: # 1 SEAT COMP. (SKU: 605-13.01.10)

Image Ref: # 2 SEAT (SKU: 605-13.01.20)

Image Ref: # 3 MOUNTING BRACKET, SEAT BASE PLATE (SKU: 605-13.01.15)

Image Ref: # 4 NUT, M6 (SKU: GB6177-M6)

Image Ref: # 5 RUBBER CUSHION MAT (SKU: 605-13.01.17)

Image Ref: # 6 BOLT, M6X12 (SKU: GB5789-M6X12)

Image Ref: # 6 STORAGE COMPARTMENT (SKU: 605-04.08.01)

Image Ref: # 8 COVER, STORAGE COMPARTMENT (SKU: 605-04.08.02)

Image Ref: # 9 HELMET HOOK (SKU: 605-03.00.03)

Image Ref: # 10 HINGE SHAFT, SEAT (SKU: 605-13.01.16)

Image Ref: # 11 PIN 2.0X16 (SKU: GB91-86 2.016)

Image Ref: # 12 CLAMP NUT, M6 (SKU: CF250T-340008)

Image Ref: # 13 SCREW, M5X25 (SKU: GB818-85 M5X25)

Image Ref: # 14 WASHER (SKU: GB96-85)

Image Ref: # 15 CUSHION MAT (SKU: 605-08.02.71)

Image Ref: # 16 RUBBER COLLAR, MAIN SLIDE SHAFT (SKU: 605-08.02.73)

Image Ref: # 17 MAIN SLIDE SHAFT (SKU: 605-08.02.72)

Image Ref: # 18 BALL (SKU: 605-08.02.74)

Image Ref: # 19 FIXING SLICE, LOCK (SKU: 519-01.02.01)

Image Ref: # 20 BRACKET, SEAT LOCK (SKU: 519-01.02.11)

Image Ref: # 21 CUSHION RUBBER RING, LOCK (SKU: 519-01.02.02)

Image Ref: # 22 SEAT LOCK (SKU: 519-01.02.10)

Image Ref: # 24 LOCK SOCKET (SKU: 605-01.02.30)

Image Ref: # 25 PARKING CABLE (SKU: 605-08.02.80)

Image Ref: # 26 CROSS SCREW, M6X16 (SKU: 519-13.01.17)
