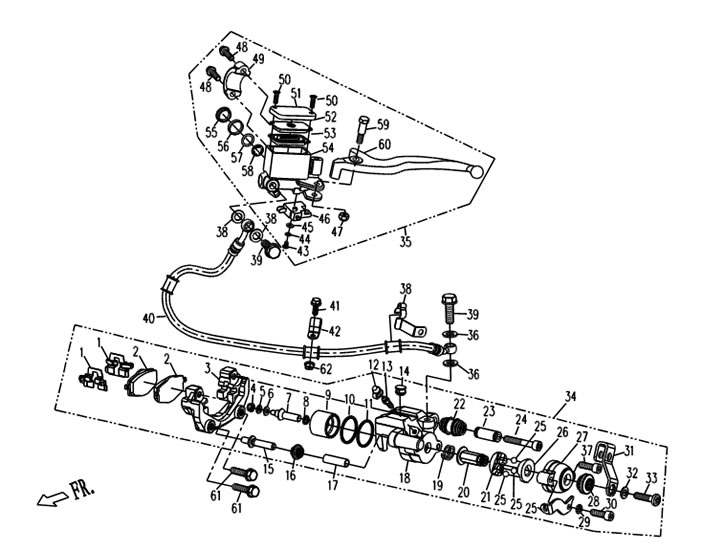

Qlink Pegasus 150 Rear Hydraulic Brake

Img Ref: # 1 CUSHION MAT (SKU: 605-08.02.71 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 2 BRAKE PAD (SKU: 605-08.02.90 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 3 MOUNTING BRACKET (SKU: 605-08.02.69 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 4 NUT, M6 (SKU: GB6172-86 M6 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 5 WASHER 6 (SKU: GB859 6 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 6 GB848 6 (SKU: GB848 6 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 7 ADJUSTING ROD (SKU: 605-08.02.56 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 9 PISTON (SKU: 605-08.02.63 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 10 RECTANGULAR SEAL II (SKU: 605-08.02.65 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 11 RECTANGULAR SEAL I (SKU: 519-08.02.51 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 12 COVER, BLEED BOLT (SKU: 519-08.01.55 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 13 BLEED BOLT (SKU: 519-08.01.54 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 14 DUST PLUG (SKU: 605-08.02.66 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 15 MAIN SLIDE SHAFT (SKU: 605-08.02.72 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 16 RUBBER COLLAR, MAIN SLIDE SHAFT (SKU: 605-08.02.73 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 17 COLLAR (SKU: 605-08.02.68 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 18 LOWER PUMP CALIPER BODY,REAR HYDRAULIC BRAKE (SKU: 605-08.02.61 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 19 SPRING (SKU: 605-08.02.64 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 20 PARKING PISTON C (SKU: 605-08.02.59 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 21 PARKING PISTON B (SKU: 605-08.02.58 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 23 SECONDARY SLIDING SHAFT (SKU: 605-08.02.75 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 24 BOLT, M8X50 (SKU: GB5789-M8X50 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 25 BALL (SKU: 605-08.02.74 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 26 PARKING PISTON A (SKU: 605-08.02.57 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 27 LOWER SUB-PUMP BODY,REAR HYDRAULIC BRAKE (SKU: 605-08.02.62 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 28 SEALING COLLAR (SKU: 605-08.02.55 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 29 WASHER 8 (SKU: GB859 8 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 30 SCREW, M8X35 (SKU: GB70 M835 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 31 PARKING ROCKARM (SKU: 605-08.02.53 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 32 WASHER (SKU: 605-08.02.52 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 33 HEXAGONAL SCREW (SKU: 605-08.02.51 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 34 LOWER PUMP, REAR BRAKE (SKU: 605-08.02.50 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 35 REAR BRAKE PUMP COMP. (SKU: 605-08.02.10 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 36 COPPER GASKET (SKU: 519-08.01.09 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 37 SCREW, M8X40 (SKU: GB70 M840 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 38 PIPE CLIP (SKU: 605-08.00.05 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 39 OIL FILLING BOLT (SKU: 519-08.01.08 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 40 REAR BRAKING PIPE COMP. (SKU: 605-08.02.30 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 41 BOLT, M6X25 (SKU: GB5789 M6X25 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 42 CLAMP (SKU: 605-08.01.03 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 43 SCREW, M4X10 (SKU: GB818 M410 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 44 WASHER 4 (SKU: GB93 4 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 45 WASHER 4 (SKU: GB95 4 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 46 BRAKE LIGHT SWITCH (SKU: 519-08.02.25 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 47 NUT, M6 (SKU: GB6187 M6 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 48 SEMI- COVER BOLT (SKU: 519-08.01.27 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 49 SEMI-COVER (SKU: 519-08.01.26 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 50 SCREW, M4X12 (SKU: GB819 M412 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 51 COVER, OIL CUP (SKU: 605-08.02.11 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 52 PAD, OIL CUP (SKU: 605-08.02.12 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 53 GASKET, OIL CUP (SKU: 605-08.02.13 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 54 BRAKE PUMP BODY. (SKU: 605-08.02.14 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 55 OIL PEEPHOLE (SKU: 519-08.01.15 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 56 GASKET,OIL PEEPHOLE (SKU: 519-08.01.28 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 57 O-RING (SKU: 519-08.01.16 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 58 SUPPORT RING (SKU: 519-08.01.29 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 59 BOLT, LEVER (SKU: 519-08.01.24 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 60 BRAKE LEVER (SKU: 605-08.01.23 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 61 BOLT, M8X35 (SKU: GB5789-M8X35 Pegasus 150 Rear Hydraulic Brake)

Img Ref: # 62 NUT, M6 (SKU: GB6177-M6 Pegasus 150 Rear Hydraulic Brake)
