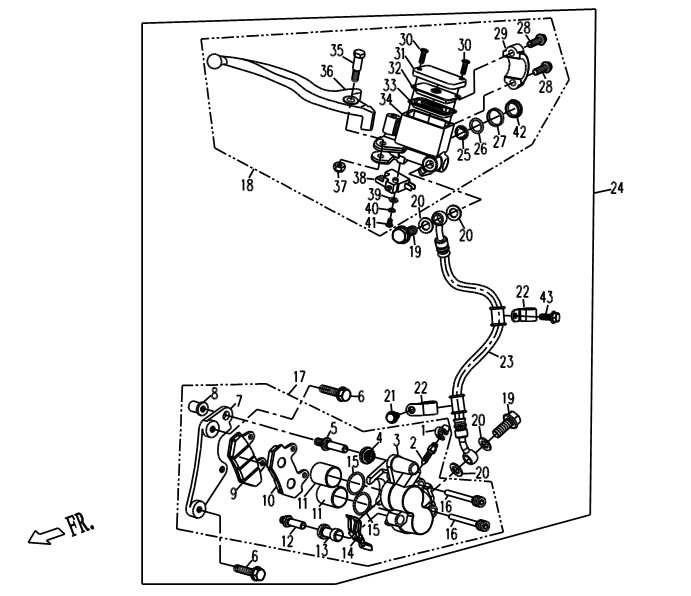

Image Ref: # 1 RUBBER CASE, BLEED BOLT (SKU: 519-08.01.66 Pegasus 150 Front Hyd. Brake)

Image Ref: # 2 BLEED BOLT (SKU: 519-08.01.65 Pegasus 150 Front Hyd. Brake)

Image Ref: # 3 SUB-PUMP BODY (SKU: 605-08.01.52 Pegasus 150 Front Hyd. Brake)

Image Ref: # 4 RUBBER COLLAR, MAIN SLIDING SHAFT (SKU: 519-08.02.62 Pegasus 150 Front Hyd. Brake)

Image Ref: # 5 MAIN SLIDING SHAFT (SKU: 519-08.02.63 Pegasus 150 Front Hyd. Brake)

Image Ref: # 6 BOLT, M8X32 (SKU: GB5789 M832 Pegasus 150 Front Hyd. Brake)

Image Ref: # 7 MOUNTING BRACKET (SKU: 605-08.01.70 Pegasus 150 Front Hyd. Brake)

Image Ref: # 8 OUTER BRAKE PAD (SKU: 605-08.01.80 Pegasus 150 Front Hyd. Brake)

Image Ref: # 9 INNER BRAKE PAD (SKU: 519-08.02.56 Pegasus 150 Front Hyd. Brake)

Image Ref: # 11 SUB-PUMP PISTON (SKU: 519-08.02.57 Pegasus 150 Front Hyd. Brake)

Image Ref: # 12 SECONDARY SLIDING SHAFT (SKU: 519-08.02.59 Pegasus 150 Front Hyd. Brake)

Image Ref: # 13 RUBBER COLLAR, SECONDARY SLIDING SHAFT (SKU: 519-08.02.64 Pegasus 150 Front Hyd. Brake)

Image Ref: # 14 BRAKE PAD TONGUE (SKU: 519-08.02.54 Pegasus 150 Front Hyd. Brake)

Image Ref: # 15 RECTANGULAR SEAL I (SKU: 519-08.02.51 Pegasus 150 Front Hyd. Brake)

Image Ref: # 16 GUIDE ROD (SKU: 519-08.02.53 Pegasus 150 Front Hyd. Brake)

Image Ref: # 17 BRAKE CALIPER COMP. (SKU: 519-08.01.50 Pegasus 150 Front Hyd. Brake)

Image Ref: # 18 BRAKE PUMP COMP. (SKU: 519-08.01.10 Pegasus 150 Front Hyd. Brake)

Image Ref: # 19 OIL FILLING BOLT (SKU: 519-08.01.08 Pegasus 150 Front Hyd. Brake)

Image Ref: # 20 COPPER GASKET (SKU: 519-08.01.09 Pegasus 150 Front Hyd. Brake)

Image Ref: # 21 BOLT, M6X16 (SKU: GB5789 M6X16 Pegasus 150 Front Hyd. Brake)

Image Ref: # 22 CLAMP (SKU: 605-08.01.03 Pegasus 150 Front Hyd. Brake)

Image Ref: # 23 HOSE COMP., FRONT BRAKE (SKU: 519-08.01.30 Pegasus 150 Front Hyd. Brake)

Image Ref: # 24 FRONT HYDRAULIC BRAKE (SKU: 605-08.01.00 Pegasus 150 Front Hyd. Brake)

Image Ref: # 25 SUPPORT RING (SKU: 519-08.01.29 Pegasus 150 Front Hyd. Brake)

Image Ref: # 26 O-RING (SKU: 519-08.01.16 Pegasus 150 Front Hyd. Brake)

Image Ref: # 27 GASKET,OIL PEEPHOLE (SKU: 519-08.01.28 Pegasus 150 Front Hyd. Brake)

Image Ref: # 28 SEMI- COVER BOLT (SKU: 519-08.01.27 Pegasus 150 Front Hyd. Brake)

Image Ref: # 29 SEMI-COVER (SKU: 519-08.01.26 Pegasus 150 Front Hyd. Brake)

Image Ref: # 30 SCREW, M4X12 (SKU: GB819 M412 Pegasus 150 Front Hyd. Brake)

Image Ref: # 31 COVER, OIL CUP (SKU: 519-08.01.11 Pegasus 150 Front Hyd. Brake)

Image Ref: # 32 PAD, OIL CUP (SKU: 519-08.01.12 Pegasus 150 Front Hyd. Brake)

Image Ref: # 33 GASKET, OIL CUP (SKU: 519-08.01.13 Pegasus 150 Front Hyd. Brake)

Image Ref: # 34 PUMP BODY (SKU: 519-08.01.14 Pegasus 150 Front Hyd. Brake)

Image Ref: # 35 BOLT, LEVER (SKU: 519-08.01.24 Pegasus 150 Front Hyd. Brake)

Image Ref: # 36 BRAKE LEVER (SKU: 519-08.01.23 Pegasus 150 Front Hyd. Brake)

Image Ref: # 37 NUT, M6 (SKU: GB6187 M6 Pegasus 150 Front Hyd. Brake)

Image Ref: # 38 BRAKE LIGHT SWITCH (SKU: 519-08.01.25 Pegasus 150 Front Hyd. Brake)

Image Ref: # 39 WASHER 4 (SKU: GB95 4 Pegasus 150 Front Hyd. Brake)

Image Ref: # 40 WASHER 4 (SKU: GB93 4 Pegasus 150 Front Hyd. Brake)

Image Ref: # 41 SCREW, M4X10 (SKU: GB818 M410 Pegasus 150 Front Hyd. Brake)

Image Ref: # 42 OIL PEEPHOLE (SKU: 519-08.01.15 Pegasus 150 Front Hyd. Brake)

Image Ref: # 43 BOLT, M6X12 (SKU: GB5789-M6X12 Pegasus 150 Front Hyd. Brake)
