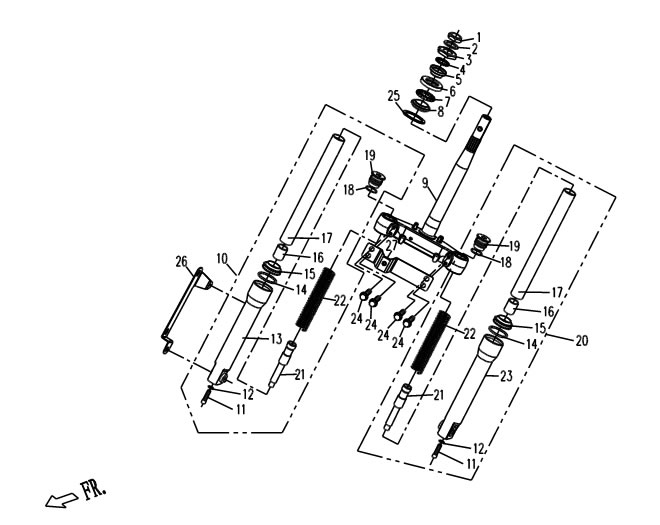

Image Ref: # 1 LOCK NUT (SKU: 50205010020)

Image Ref: # 2 THRUST WASHER (SKU: 10800000008)

Image Ref: # 3 TOP BALL RETAINER (SKU: 50205010014)

Image Ref: # 4 HOLDER 4.2, TOP BALL (SKU: 50205010015)

Image Ref: # 5 TOP RACE (SKU: 50205010002)

Image Ref: # 6 BOTTOM BALL RETAINER (SKU: 605-05.01.13)

Image Ref: # 7 HOLDER 4.75, BOTTOM BALL (SKU: 605-05.01.16)

Image Ref: # 8 BOTTOM RACE (SKU: 605-05.01.03)

Image Ref: # 9 FRONT FORK COMP. (SKU: 605-05.01.00)

Image Ref: # 10 FRONT ABSORBER(RH) (SKU: 605A-05.03.00)

Image Ref: # 11 SCREW,M10X1.25X30 (SKU: GB70 M101.2530)

Image Ref: # 12 WASHER 10 (SKU: GB93 10)

Image Ref: # 13 TUBE COMP., FRONT ABSORBER(RH) (SKU: 519-05.03.01)

Image Ref: # 14 SPRING, SEAL RING (SKU: 519-05.03.02)

Image Ref: # 15 SEAL RING (SKU: 519-05.03.03)

Image Ref: # 16 PISTON (SKU: 519-05.03.04)

Image Ref: # 17 INNER TUBE (SKU: 605A-05.03.05)

Image Ref: # 18 TOP SEAL RING (SKU: 519-05.03.06)

Image Ref: # 19 SEAL COVER (SKU: 519-05.03.07)

Image Ref: # 20 FRONT ABSORBER(LH) (SKU: 605A-05.02.00)

Image Ref: # 21 DAMPER ROD (SKU: 519-05.03.08)

Image Ref: # 22 MAIN SPRING (SKU: 605A-05.03.09)

Image Ref: # 23 TUBE COMP., FRONT ABSORBER(LH) (SKU: 519-05.02.01)

Image Ref: # 24 BOLT,M8X40 (SKU: GB9074.17 M840)

Image Ref: # 25 DUSTPROOF RING, RACE (SKU: 605-05.01.02)

Image Ref: # 26 BRACKET, FRONT LICENSE PLATE (SKU: 605-05.00.01)

Image Ref: # 27 HORN BRACKET (SKU: 605-03.85.00)
