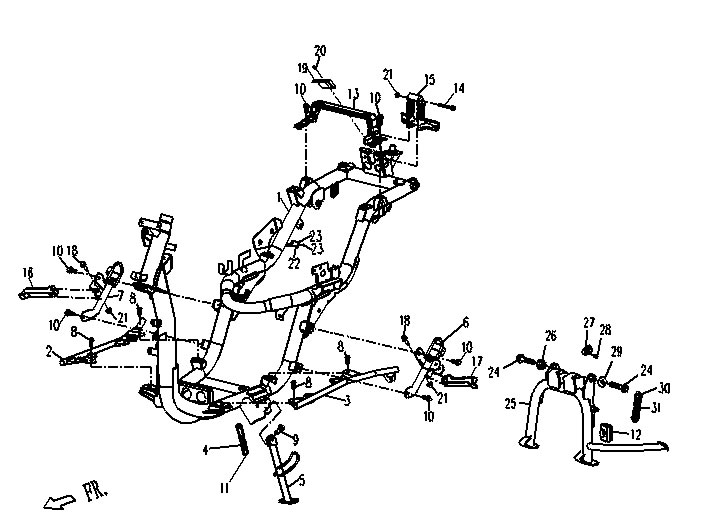

Img Ref: # 1 FRAME WELDMENT (SKU: 605-03.01.00 Pegasus 150 Frame)

Img Ref: # 2 SIDE TUBE COMP.,FOOTREST DECK(RH) (SKU: 605-03.77.00 Pegasus 150 Frame)

Img Ref: # 3 SIDE TUBE COMP., FOOTREST DECK(LH) (SKU: 605-03.76.00 Pegasus 150 Frame)

Img Ref: # 4 SPRING, SIDE STAND (SKU: 519-03.00.17 Pegasus 150 Frame)

Img Ref: # 5 SIDE STAND WELDMENT (SKU: 605A-03.72.00 Pegasus 150 Frame)

Img Ref: # 6 BRACKET COMP.,FOOT PEDAL(LH) (SKU: 605-03.74.00 Pegasus 150 Frame)

Img Ref: # 7 BRACKET COMP.,FOOT PEDAL(RH) (SKU: 605-03.75.00 Pegasus 150 Frame)

Img Ref: # 8 BOLT, M8X20 (SKU: GBT70.2 M8X20 Pegasus 150 Frame)

Img Ref: # 9 BOLT, SIDE STAND (SKU: 605-03.00.04 Pegasus 150 Frame)

Img Ref: # 10 BOLT, M8X20 (SKU: GB5789 M820 Pegasus 150 Frame)

Img Ref: # 11 SMALL SPRING, SIDE STAND (SKU: 519-03.00.18 Pegasus 150 Frame)

Img Ref: # 12 RUBBER CUSHION MAT, MAIN STAND (SKU: 519-00.10.03 Pegasus 150 Frame)

Img Ref: # 13 TOP HOLDER COMP., SEAT (SKU: 605-03.82.00 Pegasus 150 Frame)

Img Ref: # 14 BOLT, M6X50 (SKU: GB5789 M650 Pegasus 150 Frame)

Img Ref: # 15 BRACKET COMP., TAIL LIGHT (SKU: 605-03.83.00 Pegasus 150 Frame)

Img Ref: # 16 FOOT PEDALCOMP.(RH) (SKU: 605-03.79.10 Pegasus 150 Frame)

Img Ref: # 17 FOOT PEDAL COMP.(LH) (SKU: 605-03.78.10 Pegasus 150 Frame)

Img Ref: # 18 FLANGE BOLT M6, FOOT PEDAL (SKU: 519-03.00.13 Pegasus 150 Frame)

Img Ref: # 19 BRACKET, ANTITHEFTLOCK (SKU: 605-03.00.01 Pegasus 150 Frame)

Img Ref: # 20 SCREW, M5X12 (SKU: GB818 M512 Pegasus 150 Frame)

Img Ref: # 21 NUT, M6 (SKU: GB6177-M6 Pegasus 150 Frame)

Img Ref: # 22 NAMEPLATE (SKU: 519-03.00.14 Pegasus 150 Frame)

Img Ref: # 23 RIVET (SKU: GB 12618 48 Pegasus 150 Frame)

Img Ref: # 24 BOLT, M10X35 (SKU: GB5789 M1035 Pegasus 150 Frame)

Img Ref: # 25 MAIN STAND WELDMENT (SKU: 605A-00.10.10 Pegasus 150 Frame)

Img Ref: # 26 RIGHT BUSH, MAIN STAND (SKU: 519-00.10.01 Pegasus 150 Frame)

Img Ref: # 27 SPRING HANGER COMP., MAIN STAND (SKU: 519-00.10.30 Pegasus 150 Frame)

Img Ref: # 28 SCREW, M6X12 (SKU: GB70 M6X12 Pegasus 150 Frame)

Img Ref: # 29 LEFT BUSH, MAIN STAND (SKU: 519-00.10.02 Pegasus 150 Frame)

Img Ref: # 30 SMALL SPRING, MAIN STAND (SKU: 519-00.10.05 Pegasus 150 Frame)

Img Ref: # 31 SPRING, MAIN STAND (SKU: 519-00.10.04 Pegasus 150 Frame)
