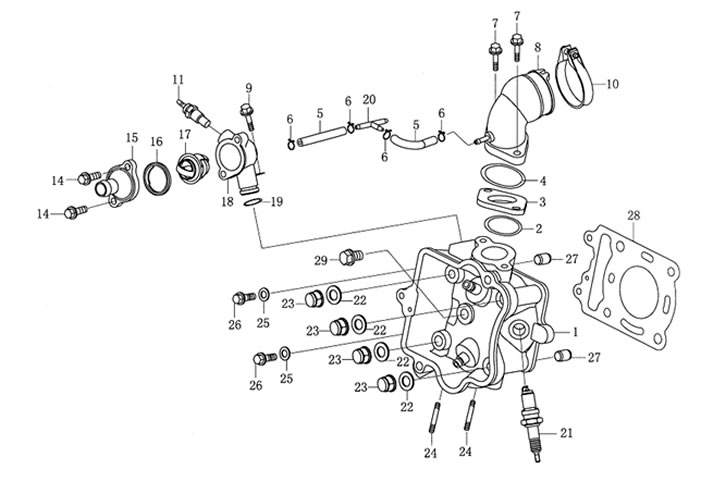

Image Ref: # 1 CYLINDER HEAD COMP. (SKU: 1P58MJ-022300 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 2 O-RING, 27�2 (SKU: 152MI-022018 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 3 GASKET, JOINT (SKU: 152MI-022019 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 4 O-RING, 29.7�2.8 (SKU: 152MI-022016 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 5 VACUUM TUBE 77 (SKU: 1P39MB-022019 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 6 CIRCLIP 6.5 (SKU: QCT621A 6.5 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 7 BOLT, M6X22 (SKU: 152MI-080013 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 8 JOINT COMP., CARBURETOR (SKU: 1P52MI-A-022100 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 9 BOLT, M6X18 (SKU: 152MI-023008 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 10 CLAMP SET, INTAKE (SKU: 152MI-022200 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 11 TRANSDUCER, WATER TEMPERATURE (SKU: 1P52MI-A-022600 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 14 BOLT, M6X16 (SKU: 152MI-090005 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 15 LOWER CASE, THERMOSTAT (SKU: 152MI-022801 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 16 SEAL RING (SKU: 152MI-022802 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 17 THERMOSTAT COMP. (SKU: 152MI-022810 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 18 UPPER CASE, THERMOSTAT (SKU: 152MI-022803 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 19 O-RING, 14.8X1.9 (SKU: 152MI-022804 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 20 T JOINT, VACUUM (SKU: 1P39MB-022017 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 21 SPARK PLUG COMP. (SKU: 172MM-022400 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 22 WASHER 8 (SKU: 152MI-022012 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 23 CAP NUT M8 (SKU: 152MI-022013 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 24 STUD, EXAUST PIPE (SKU: 172MM-022007 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 25 WASHER, 6-D�Cr (SKU: GB848-85 6-DCr Pegasus 150 Cylinder Head Assy.)

Image Ref: # 26 BOLT M6X25 (SKU: 152MI-021017 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 27 DOWEL PIN, 10X14 (SKU: 152MI-021005 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 28 GASKET, CYLINDER HEAD COVER (SKU: 1P58MJ-022011 Pegasus 150 Cylinder Head Assy.)

Image Ref: # 29 PLUG (SKU: 152MI-022303 Pegasus 150 Cylinder Head Assy.)
