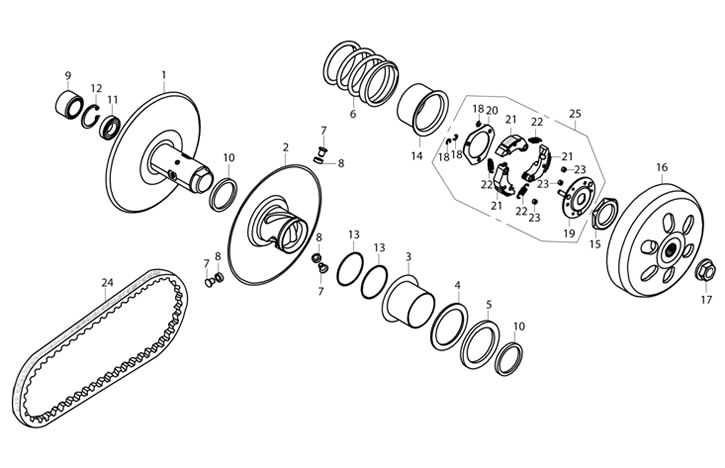

Image Ref: # 1 DRIVEN FACE COMP. (SKU: 1P52MI-A-052100 Pegasus 150 Clutch)

Image Ref: # 2 MOVABLE DRIVEN FACE COMP. (SKU: 1P52MI-A-052200 Pegasus 150 Clutch)

Image Ref: # 3 SEAL COLLAR (SKU: 1P52MI-A-052001 Pegasus 150 Clutch)

Image Ref: # 4 PLASTIC WASHER (SKU: 1P52MI-A-052005 Pegasus 150 Clutch)

Image Ref: # 5 WASHER, DAMPER (SKU: 1P52MI-A-052006 Pegasus 150 Clutch)

Image Ref: # 6 SPRING, CLUTCH (SKU: 1P52MI-A-052002 Pegasus 150 Clutch)

Image Ref: # 7 GUIDE PIN (SKU: 1P52MI-A-052003 Pegasus 150 Clutch)

Image Ref: # 8 ROLLER, GUIDE (SKU: 1P52MI-A-052004 Pegasus 150 Clutch)

Image Ref: # 9 NEEDLE BEARING 22X29X18 (SKU: 172MM-052310 Pegasus 150 Clutch)

Image Ref: # 10 SEAL, DRIVEN FACE (SKU: 1P52MI-A-052300 Pegasus 150 Clutch)

Image Ref: # 11 BEARING 61902 (SKU: GBT276-94 61902 Pegasus 150 Clutch)

Image Ref: # 12 CIRCLIP 28A (SKU: GB894.1-86 28A Pegasus 150 Clutch)

Image Ref: # 13 O-RING (SKU: 1P52MI-A-052009 Pegasus 150 Clutch)

Image Ref: # 14 COLLAR (SKU: 1P52MI-A-052008 Pegasus 150 Clutch)

Image Ref: # 15 SPECIAL NUT (SKU: 1P52MI-A-052007 Pegasus 150 Clutch)

Image Ref: # 16 CLUTCH OUTER COMP. (SKU: 1P52MI-A-052400 Pegasus 150 Clutch)

Image Ref: # 17 NUT, M12X1.25 (SKU: 172MM-052008 Pegasus 150 Clutch)

Image Ref: # 18 CIRCLIP 7 (SKU: 1P52MI-A-052503 Pegasus 150 Clutch)

Image Ref: # 19 HUB, CLUTCH RELEASE (SKU: 1P52MI-A-052510 Pegasus 150 Clutch)

Image Ref: # 20 END PLATE, CLUTCH (SKU: 1P52MI-A-052501 Pegasus 150 Clutch)

Image Ref: # 21 CLUTCH WEIGHT SET (SKU: 1P52MI-A-052520 Pegasus 150 Clutch)

Image Ref: # 22 RETURN SPRING, CLUTCH (SKU: 1P52MI-A-052502 Pegasus 150 Clutch)

Image Ref: # 23 RUBBER, DAMPER (SKU: 1P52MI-A-052530 Pegasus 150 Clutch)

Image Ref: # 24 DRIVE BELT, TEETH TYPE (SKU: 1P52MI-A-053000 Pegasus 150 Clutch)

Image Ref: # 25 CLUTCH ASSY. (SKU: 1P52MI-A-052500 Pegasus 150 Clutch)
