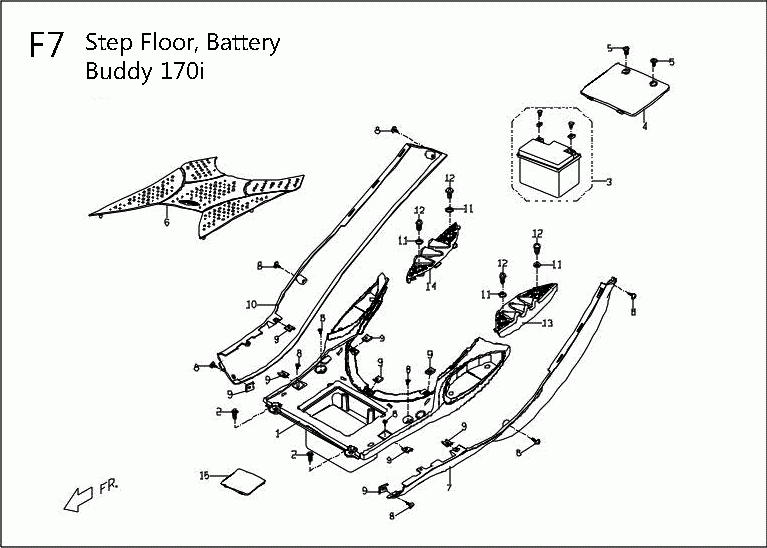

| No. | Part No. | Q'TY | PART NAME | Price | Add to Cart |
| 1 | SEE PAGE 1 | 1 | STEP FLOOR, DIAGRAM PAGE 1 | ||
| 2 | 90200602500 | 4 | SCREW WITH WASHER | $1.16 | |
| 3 | C2583000000 | 1 | BATTERY | $93.20 | |
| 4 | C2624031650 | 1 | BATTERY COVER ALL | $7.50 | |
| 5 | 90130501401 | 2 | C-R RECESS PAN HD. TAPPING | $0.21 | |
| 6 | SEE PAGE 1 | 1 | MAT FLOOR SEE DIAGRAM PAGE 1 | ||
| 7 | SEE PAGE 1 | 1 | LH SIDE COVER SEE DIAGRAM PAGE 1 | ||
| 8 | 90150501602 | 10 | C-R RECESS PAN HD. TAPPING | $0.23 | |
| 9 | 92370500003 | 9 | U TYPE SPRING NUT | $1.16 | |
| 10 | SEE PAGE 1 | 1 | RH SIDE COVER SEE DIAGRAM PAGE 1 | ||
| 11 | 92140600018 | 4 | WASHER | $0.92 | |
| 12 | 90040602200 | 4 | CR PAN HD MACHINE SCREW(M6*22L | $1.16 | |
| 13 | C26240217701 | 1 | STEP PLATE,LH REAR, silver | $18.40 | |
| 14 | C262D0217701 | 1 | STEP PLATE,RH REAR, silver | $18.40 |
