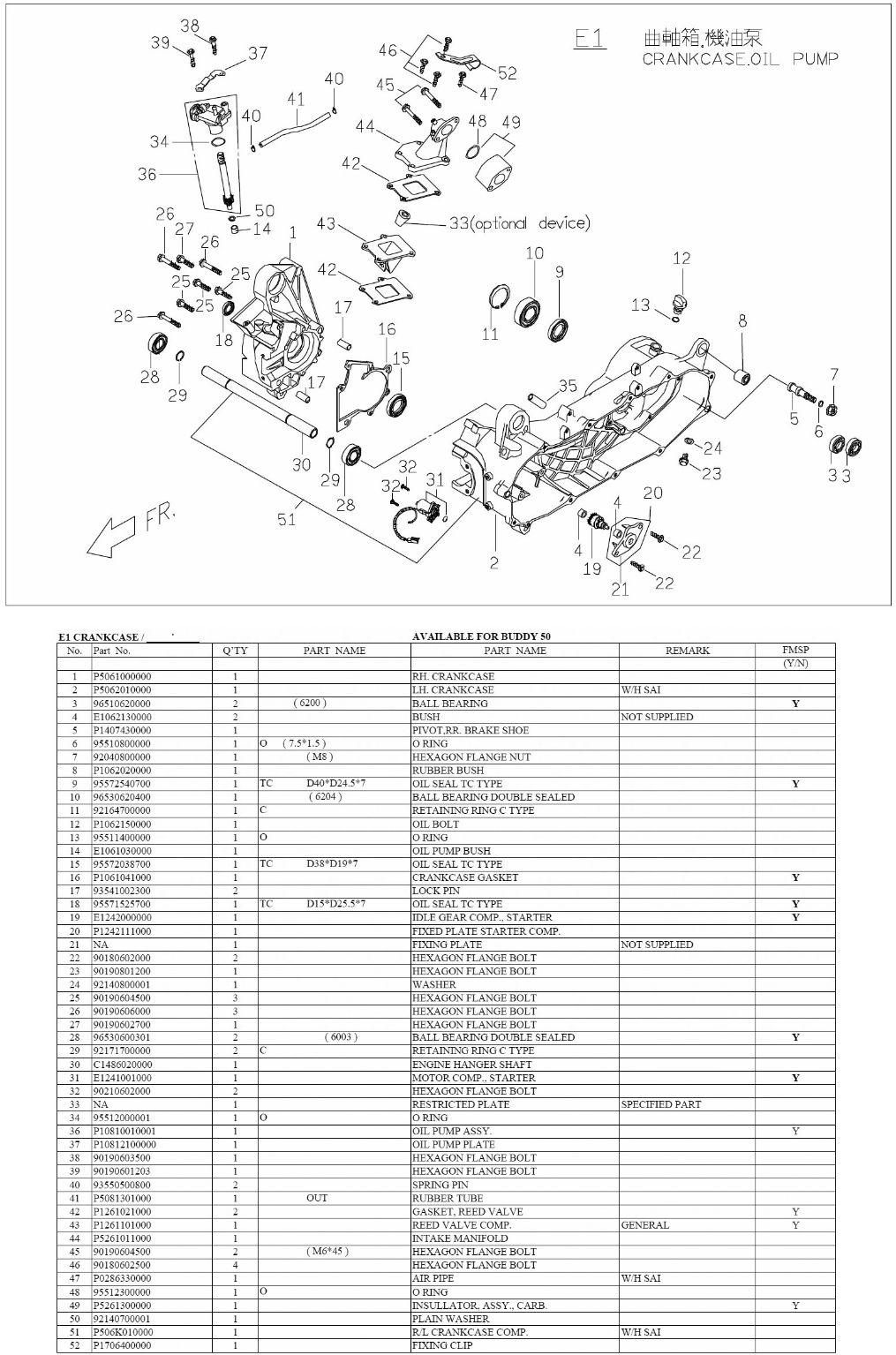

#1 RH. Crankcase
#2 LH. Crankcase
#3 BALL BEARING
#4 BUSH
#6 O RING
#7 HEXAGON FLANGE NUT
#8 RUBBER BUSH
#9 OIL SEAL, TC TYPE
#10 BALL BEARING, DOUBLE SEAL
#11 RETAINING, RING, C TYPE
#12 OIL BOLT
#13 O RING
#14 BUSH
#15 OIL SEAL, TC TYPE
#16 GASKET , CRANKCASE
#17 LOCK PIN
#18 OIL SEAL, TC TYPE
#19 IDLE GEAR COMP, STARTER
#20 FIXED PLATE, STARTER COMP.
#12 HEXAGON FLANGE BOLT (M6*20L)(M6*20L)
#24 WASHER
#25 HEXAGON FLANGE BOLT
#26 HEXAGON FLANGE BOLT
#27 HEXAGON FLANGE BOLT
#28 BALL BEARING DOUBLE SEALED
#29 RETAINING, RING, C TYPE
#30 ENGINE HANGER SHAFT
#31 MOTOR COMP., STARTER
#32 HEXAGON FLANGE BOLT
#34 O RING
#36 OIL PUMP ASSY.
#37 OIL PUMP PLATE
#45 HEXAGON FLANGE BOLT
#39 HEXAGON FLANGE BOLT
#40 SPRING PIN
#41 RUBBER TUBE
#42 GASKET, REED VALVE
#43 REED VALVE COMP.GENERAL
#44 INTAKE MANIFOLD
#25 HEXAGON FLANGE BOLT
#13 HEXAGON FLANGE BOLT
#53 INLET BUSH
#48 O RING
#49 INSULLATOR, ASSY., CARB.
#50 PLAIN WASHER
#51 R/L CRANKCASE COMP.
#52 FIXING CLIP
|
|
