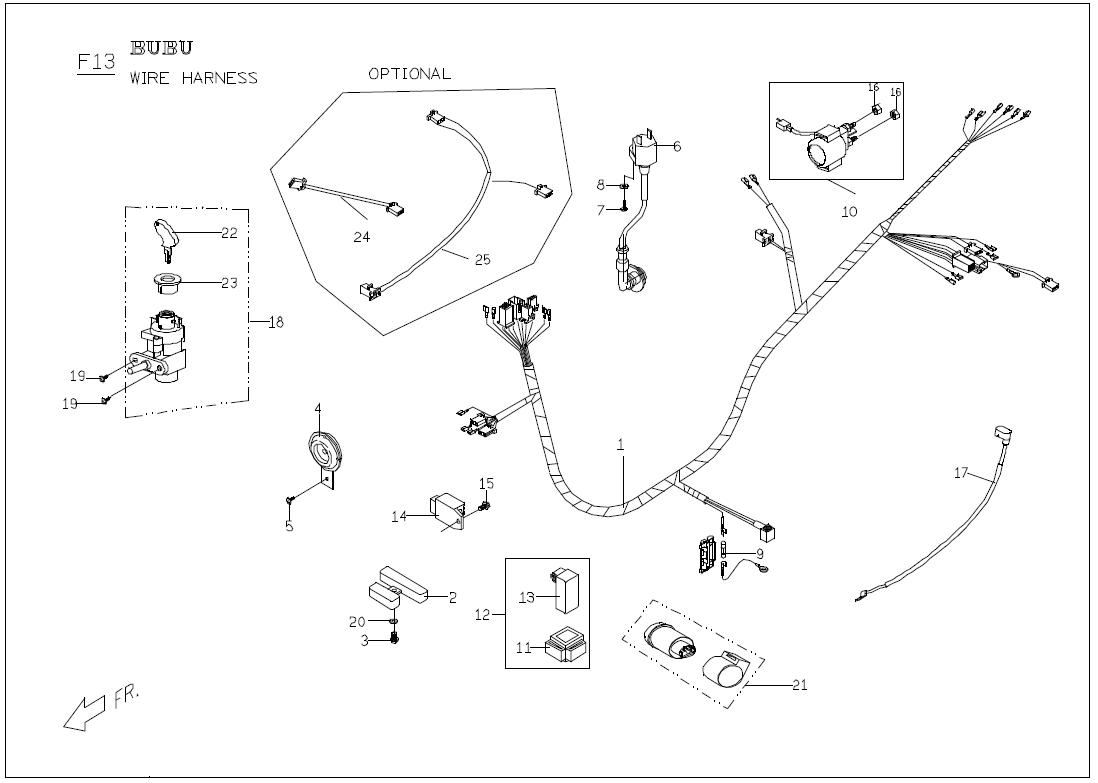

Buddy 125/150 Wire Harness


Buddy 125 Wire Harness

Buddy 125 Wire Harness

Sort By:

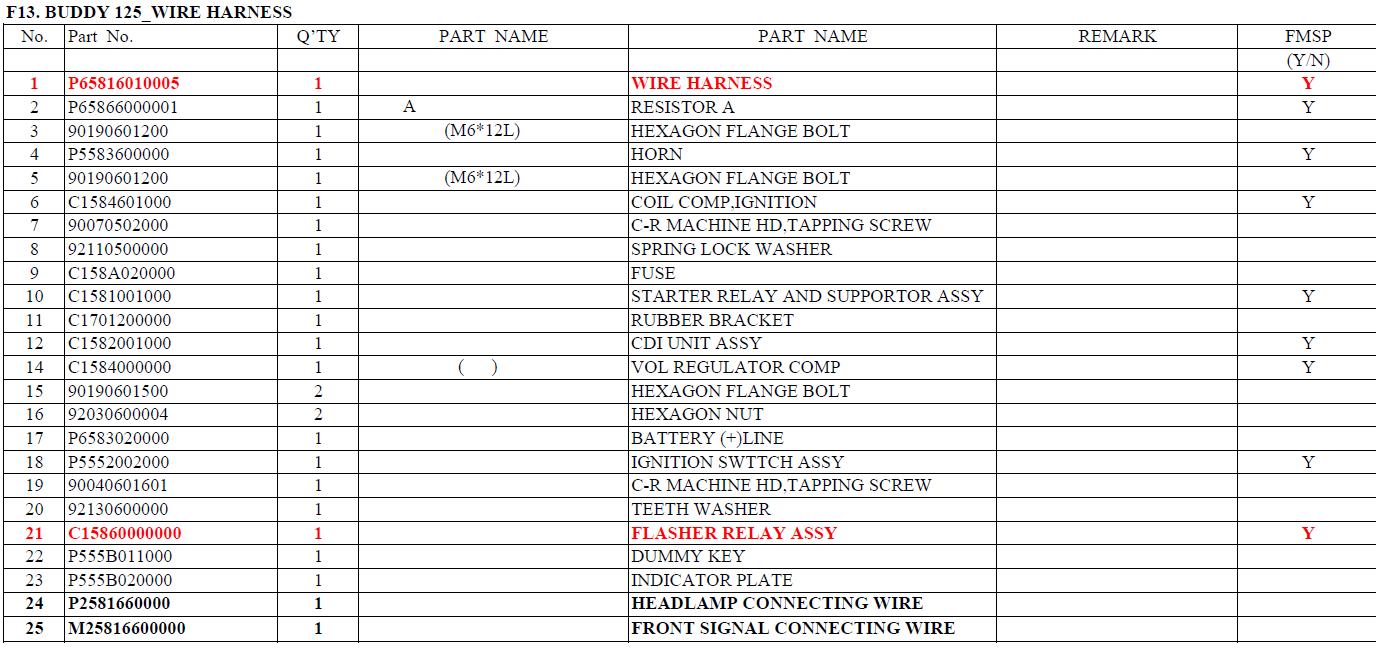

Img Ref # 1 WIRE HARNESS(BUDDY 125) 2006 (SKU: P65816010005 Buddy 125 Wire Harness)
Img Ref # 1 WIRE HARNESS(BUDDY 125)FROM 2006.12 / WITH CELL-PHONE CHARGING SEAT (SKU: P65816000007 Buddy 125 Wire Harness)
Img Ref # 10 STARTER RELAY AND SUPPORTOR ASSY (RATTLER 110,BUDDY 4T,BLUR220,HOOL) (SKU: C1581001000 or C15810030000 Buddy 125 Wire Harness)
Img Ref # 2 RESISTOR A (SKU: P65866000001 Buddy 125 Wire Harness)
Img Ref # 3 HEXAGON FLANGE BOLT (SKU: 90190601200 Buddy 125 Wire Harness)
Img Ref # 4 HORN (SKU: P5583600000 Buddy 125 Wire Harness)
Img Ref # 5 HEXAGON FLANGE BOLT (SKU: 90040601400 - new part 90040601601 Buddy 125 Wire Harness)
Img Ref # 5 HEXAGON FLANGE BOLTFROM 2007.4 (SKU: 90190801202 old SKU90190801200 Buddy 125 Wire Harness)
Img Ref # 6 COIL COMP,IGNITION (SKU: C1584601000 Buddy 125 Wire Harness)
Img Ref # 7 C-R MACHINE HD,TAPPING SCREW (SKU: 90070502000 Buddy 125 Wire Harness)
Img Ref # 8 SPRING LOCK WASHER (SKU: 92110500000 Buddy 125 Wire Harness)
Img Ref # 9 FUSE (10A)10A (SKU: C158A020000 Buddy 125 Wire Harness)
Img Ref #11 RUBBER BRACKET (SKU: C1701200000 Buddy 125 Wire Harness)
Img Ref #12 CDI UNIT ASSY (SKU: C1582001000 Buddy 125 Wire Harness)
Img Ref #14 VOL REGULATOR COMP (SKU: C1584000000 use C15840020000 Buddy 125 Wire Harness)
Img Ref #16 HEXAGON NUT (SKU: 92030600004 Buddy 125 Wire Harness)
Img Ref #17 BATTERY (+)LINE (SKU: P6583020000 Buddy 125 Wire Harness)
Img Ref #18 IGNITION SWITCH ASSY (SKU: P5552002000 -4000 Buddy 125 Wire Harness Buddy 50 2012 and older)
Img Ref #19 C-R MACHINE HD,TAPPING SCREW (SKU: 90040601601 Buddy 125 Wire Harness)
Img Ref #20 TEETH WASHER (SKU: 92130600000 Buddy 125 Wire Harness)
Img Ref #21 FLASHER RELAY ASSY (SKU: C15860000000 Buddy 125 Wire Harness)
Img Ref #22 DUMMY KEY (SKU: ES55B010000 Buddy 125 Wire Harness)
Img Ref #23 INDICATOR PLATE (SKU: P555B020000 Buddy 125 Wire Harness)
Img Ref #24 HEADLAMP CONNECTING WIREonly for w/o cell-phone charging (SKU: P2581660000 Buddy 125 Wire Harness)
Img Ref #25 FRONT SIGNAL CONNECTING WIRE (SKU: M25816600000 Buddy 125 Wire Harness)
