Genuine Buddy 125 Cylinder Piston Crankshaft

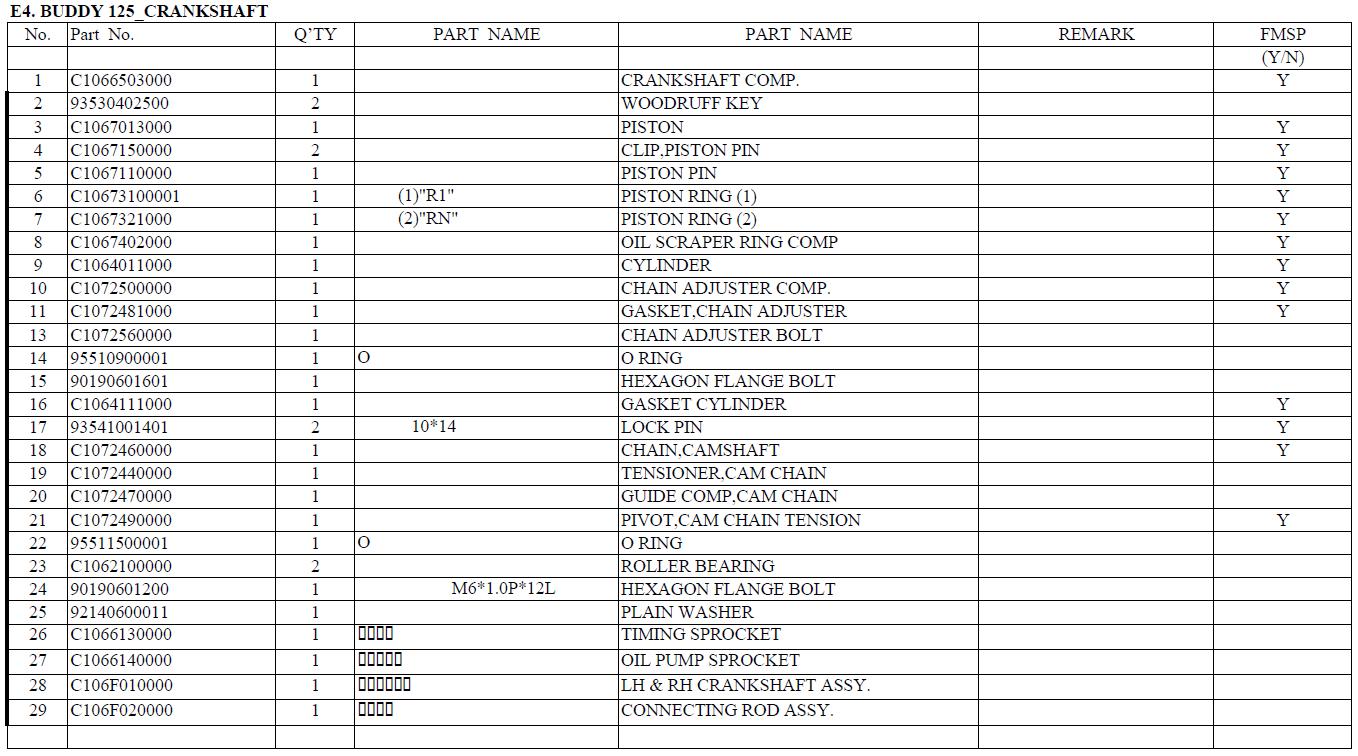

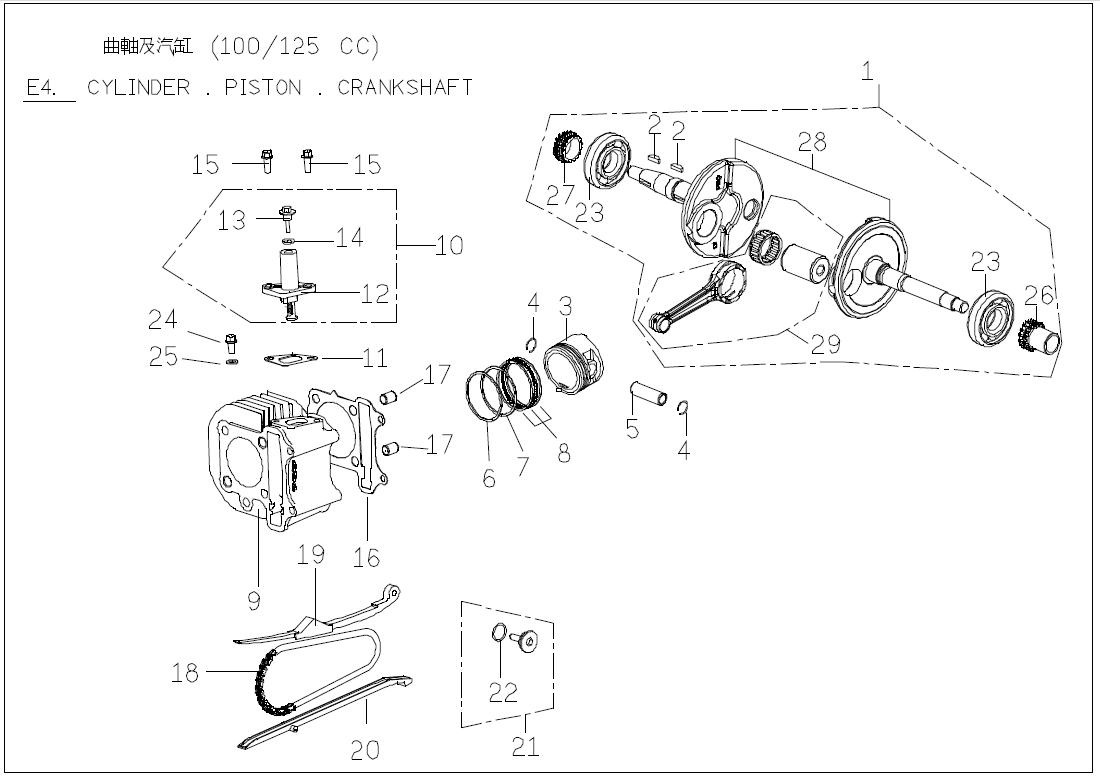

Genuine Buddy 125 Crankshaft Manuel

#1 CRANKSHAFT COMP.

#1 CRANKSHAFT COMP.

CRANKSHAFT COMP. supercedes C1066503000
#2 WOODRUFF KEY

#2 WOODRUFF KEY

WOODRUFF KEY
#3 PISTON

#3 PISTON

PISTON
#4 CLIP,PISTON PIN

#4 CLIP,PISTON PIN

CLIP,PISTON PIN
#5 PISTON PIN

#5 PISTON PIN

PISTON PIN
#6 PISTON RING (1)

#6 PISTON RING (1)

PISTON RING (1)
#7 PISTON RING (2)

#7 PISTON RING (2)

PISTON RING (2)
#8 OIL SCRAPER RING COMP

#8 OIL SCRAPER RING COMP

OIL SCRAPER RING COMP
#9 CYLINDER

#9 CYLINDER

CYLINDER
#10 CHAIN ADJUSTER COMP.

#10 CHAIN ADJUSTER COMP.

CHAIN ADJUSTER COMP.
#11 GASKET,CHAIN ADJUSTER

#11 GASKET,CHAIN ADJUSTER

GASKET,CHAIN ADJUSTER
#13 CHAIN ADJUSTER BOLT

#13 CHAIN ADJUSTER BOLT

CHAIN ADJUSTER BOLT
#14 O RING

#14 O RING

O RING
Img Ref # 17 HEXAGON FLANGE BOLT (Buddy 125 Starting Motor)

Img Ref # 17 HEXAGON FLANGE BOLT (Buddy 125 Starting Motor)

HEXAGON FLANGE BOLT
#16 GASKET CYLINDER

#16 GASKET CYLINDER

GASKET CYLINDER
Img Ref # 30 LOCK PIN

Img Ref # 30 LOCK PIN

LOCK PIN
#18 CHAIN,CAMSHAFT

#18 CHAIN,CAMSHAFT

CHAIN,CAMSHAFT
#19 TENSIONER,CAM CHAIN

#19 TENSIONER,CAM CHAIN

TENSIONER,CAM CHAIN
#20 GUIDE COMP,CAM CHAIN

#20 GUIDE COMP,CAM CHAIN

GUIDE COMP,CAM CHAIN
#21 PIVOT,CAM CHAIN TENSION

#21 PIVOT,CAM CHAIN TENSION

PIVOT,CAM CHAIN TENSION
#22 O RING

#22 O RING

O RING
#23 ROLLER BEARING

#23 ROLLER BEARING

ROLLER BEARING
Img Ref # 3 HEXAGON FLANGE BOLT (Buddy 125 Wire Harness)

Img Ref # 3 HEXAGON FLANGE BOLT (Buddy 125 Wire Harness)

HEXAGON FLANGE BOLT
PLAIN WASHER

PLAIN WASHER

PLAIN WASHER
#26 TIMING SPROCKET

#26 TIMING SPROCKET

TIMING SPROCKET
#27 OIL PUMP SPROCKET

#27 OIL PUMP SPROCKET

OIL PUMP SPROCKET
#28 LH & RH CRANKSHAFT ASSY.

#28 LH & RH CRANKSHAFT ASSY.

LH & RH CRANKSHAFT ASSY.
#29 CONNECTING ROD ASSY.

#29 CONNECTING ROD ASSY.

CONNECTING ROD ASSY.
