Genuine Buddy 125 Carburetor

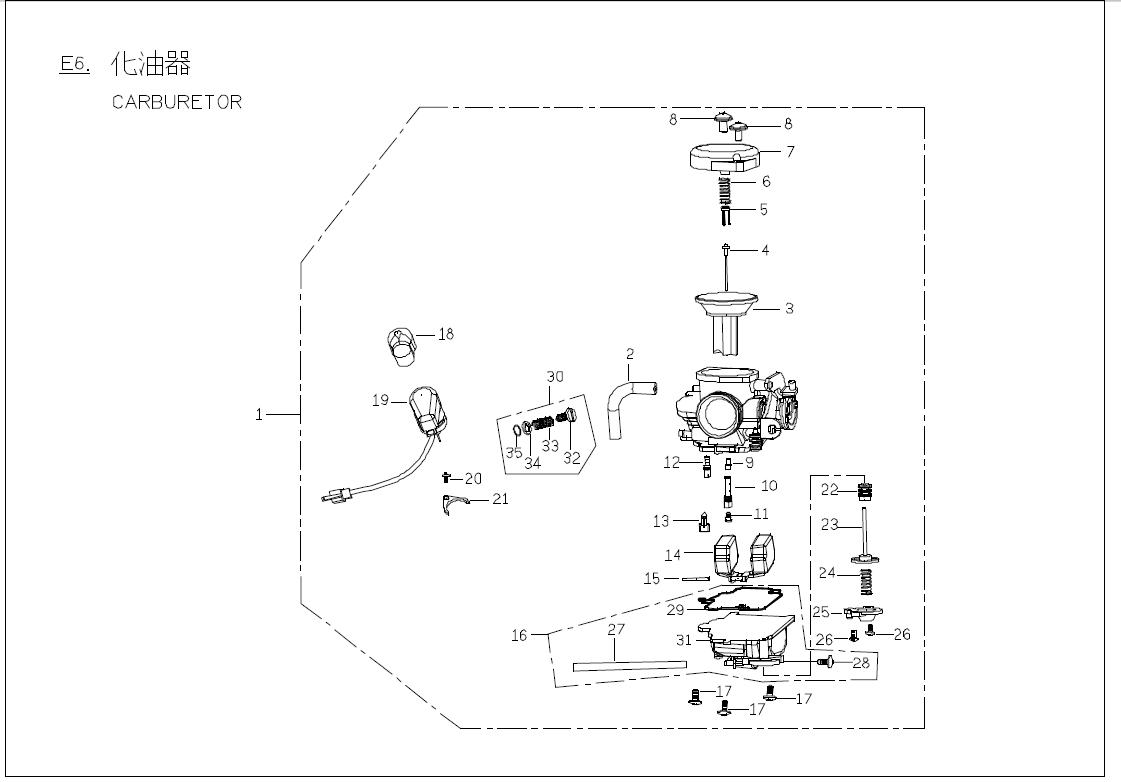

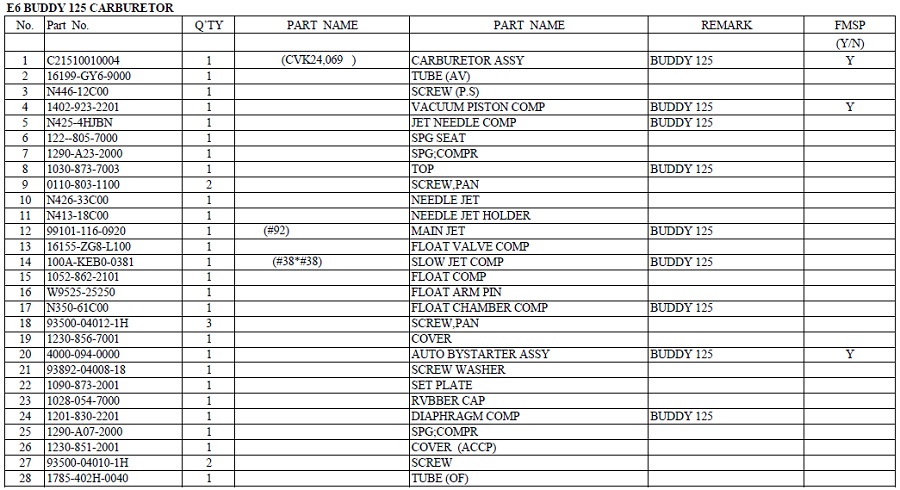

Genuine Buddy 125 Carburetor Manual

Img Ref # 2 TUBE SET (SKU: 16199GY69000 Buddy Carburetor)

Img Ref # 3 VACUUM PISTON COMP (SKU: 14029232201 Buddy Carburetor)

Img Ref # 4 JET NEEDLE COMP (SKU: N4254HJBN Buddy Carburetor)

Img Ref # 5 VALVE PLATE SET (SKU: 12298057000 Buddy Carburetor)

Img Ref # 6 SPG;COMPR (SKU: 1290A232000 Buddy Carburetor)

Img Ref # 7 TOP SET (SKU: 10308737003 Buddy Carburetor)

Img Ref # 8 SCREW,PAN (SKU: 1108031100 Buddy Carburetor)

Img Ref # 9 NEEDLE JET (SKU: N42633C00 Buddy Carburetor)

Img Ref # 10 NEEDLE JET HOLDER (SKU: N41318C00 Buddy Carburetor)

Img Ref # 12 SLOW JET (SKU: 1001440H0381 Buddy Carburetor)

Img Ref # 13 FLOAT VALVE SET (SKU: 16155ZG8L100 Buddy Carburetor)

Img Ref # 14 FLOAT COMP (SKU: 10528622101 Buddy Carburetor)

Img Ref # 15 ARM PIN (SKU: W952525250 Buddy Carburetor)

Img Ref # 17 SCREW,PAN (SKU: 93500040121H Buddy Carburetor)

Img Ref # 18 HOLDER CAP (SKU: 12308567001 Buddy Carburetor)

Img Ref # 19 AUTO BYSTARTER SET (SKU: 40000940000 Buddy Carburetor)

Img Ref # 21 SET PLATE (SKU: 10908732001 Buddy Carburetor)

Img Ref # 22 SEALING CAP (SKU: 10280547000 Buddy Carburetor)

Img Ref # 23 DIAPHRAGM COMP (SKU: 12018302201 Buddy Carburetor)

Img Ref # 24 SPG;COMPR (SKU: 1290A072000 Buddy Carburetor)

Img Ref # 25 COVER (SKU: 12308502000 Buddy Carburetor)

Img Ref # 26 SCREW;PAN (SKU: 93500040101H Buddy Carburetor)

Img Ref # 27 TUBE SET (SKU: 1785402H0040 Buddy Carburetor)

Img Ref # 28 DRAIN SCREW (SKU: 11988222000 Buddy Carburetor)

Img Ref # 29 O RING (SKU: 12028656000 Buddy Carburetor)

Img Ref # 31 FLOAT CHAMBER COMP. (SKU: N35061C00 Buddy Carburetor)

Img Ref # 33 COMPRESION SPRING (SKU: W17115189901 Buddy Carburetor)

Img Ref # 34 PLAIN WASHER (SKU: 3018032000 Buddy Carburetor)

Img Ref # 35 O RING (SKU: 16075KG89010M1 Buddy Carburetor)
