Click to Enlarge

Click to Enlarge

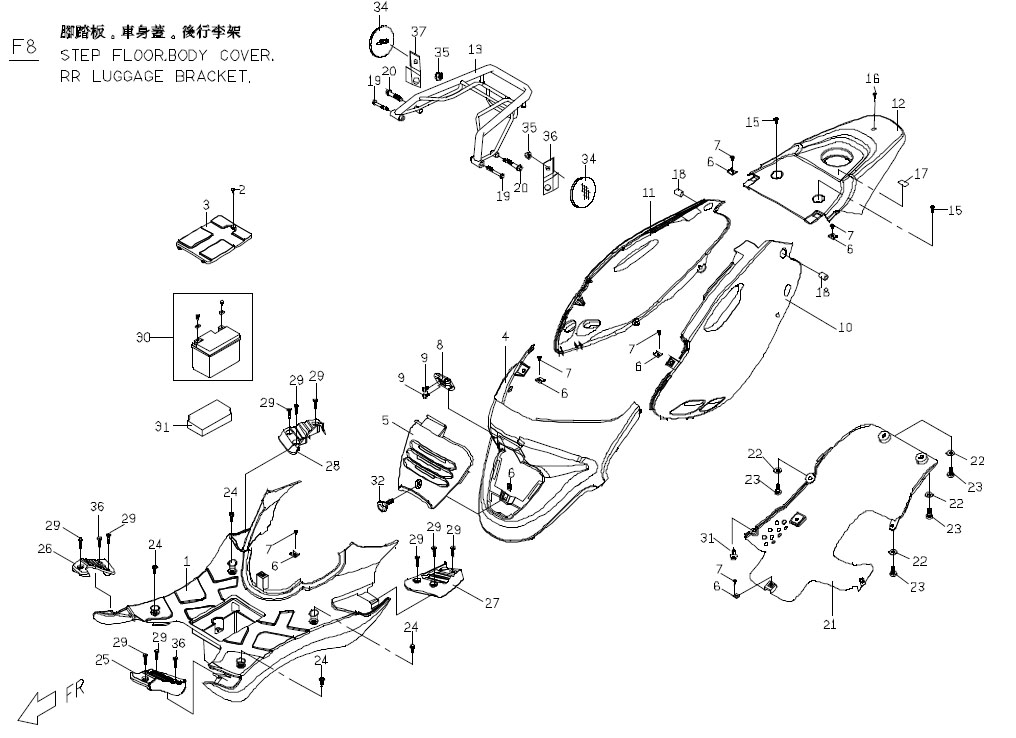

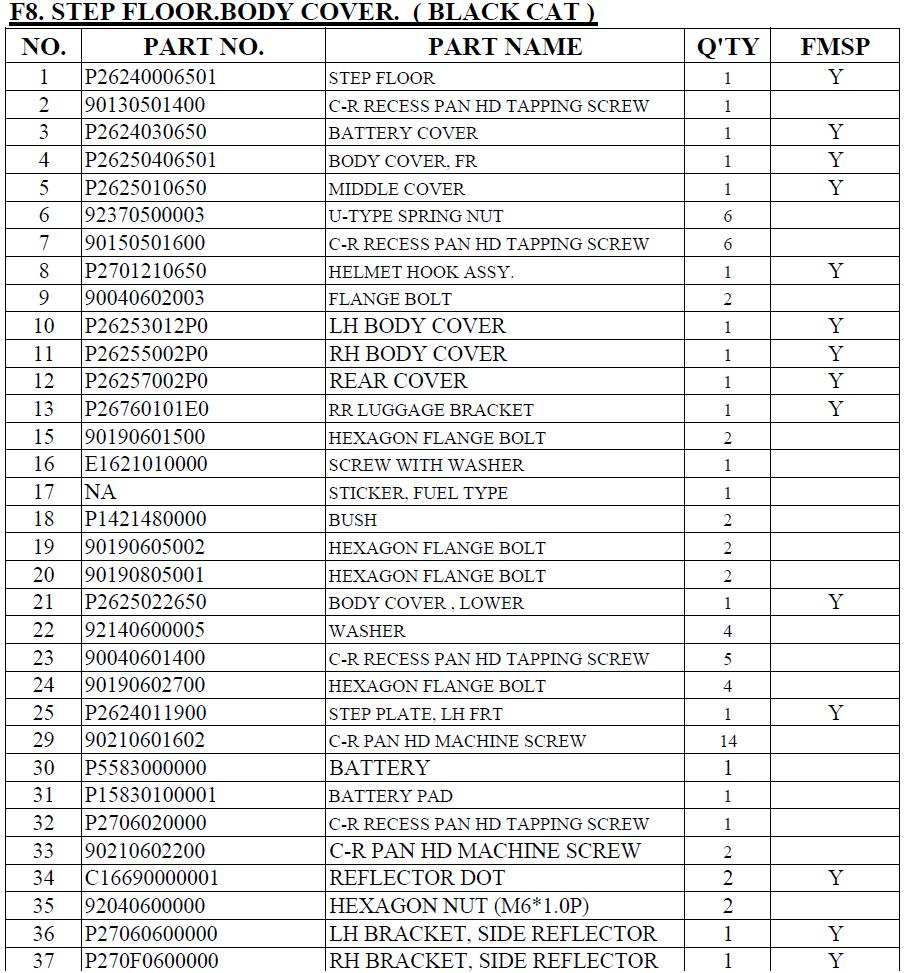

Img Ref # 1 STEP FLOOR

Img Ref # 10 LH BODY COVERYELLOW

Img Ref # 11 RH BODY COVERYELLOW

Img Ref # 12 REAR COVERYELLOW

Img Ref # 13 RR LUGGAGE BRACKETRED

Img Ref # 15 HEXAGON FLANGE BOLT

Img Ref # 16 SCREW WITH WASHER(M6*1P*10L)

Img Ref # 18 BUSH

Img Ref # 19 HEXAGON FLANGE BOLT

Img Ref # 2 C-R RECESS PAN HD TAPPING SCREW

Img Ref # 20 HEXAGON FLANGE BOLT

Img Ref # 21 BODY COVER , LOWER

Img Ref # 22 WASHER

Img Ref # 23 C-R RECESS PAN HD TAPPING SCREW(M6*14L)

Img Ref # 24 HEXAGON FLANGE BOLT

Img Ref # 25 STEP PLATE, LH FRT

Img Ref # 26 STEP PLATE, RH FRT

Img Ref # 27 STEP PLATE, LH RR

Img Ref # 28 STEP PLATE, RH RR

Img Ref # 3 BATTERY COVER

Img Ref # 30 BATTERYPMX50

Img Ref # 31 BATTERY PAD

Img Ref # 32 C-R RECESS PAN HD TAPPING SCREW

Img Ref # 34 REFLECTOR DOT

Img Ref # 35 HEXAGON NUT (M6*1.0P)

Img Ref # 36 LH BRACKET, SIDE REFLECTOR

Img Ref # 37 RH BRACKET, SIDE REFLECTOR

Img Ref # 4 BODY COVER, FR

Img Ref # 5 MIDDLE COVER

Img Ref # 6 U-TYPE SPRING NUT

Img Ref # 7 C-R RECESS PAN HD TAPPING SCREW(M5*16L)

Img Ref # 8 HELMET HOOK ASSY.

Img Ref # 9 FLANGE BOLT
