Black Cat, Rattler & Roughhouse 50 Carburetor
Roughhouse 50, Rattler 50, Black Cat 50 Carburetor

Roughhouse 50, Rattler 50, Black Cat 50 Carburetor

Sort By:
Buddy 50, Rattler 50, Roughhouse 50, Black Cat 50 Carburetor Overhaul Kit (SKU: B50CK)We put together this kit to make it easy to order all the parts you would need for a major overhaul on a Buddy 50 Carburetor (also compatible with Roughhouse 50 and Rattler 50).  This kit includes the following:  O ring, mixture screw set, slow jet, main jet, needle jet holder, float set, float valve set, and float chamber gasket.

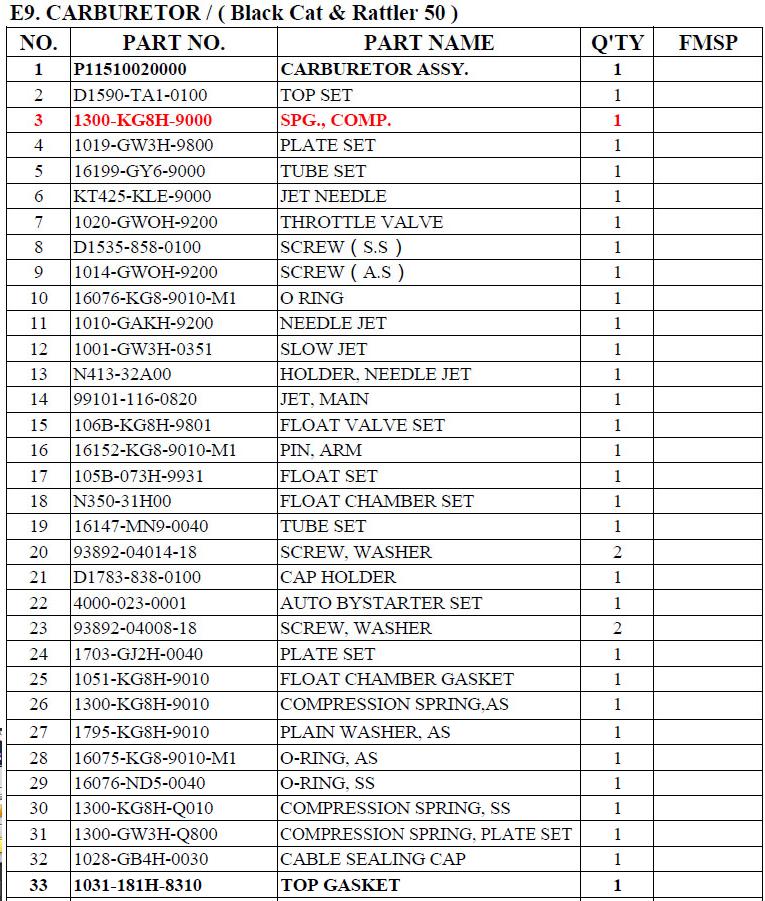

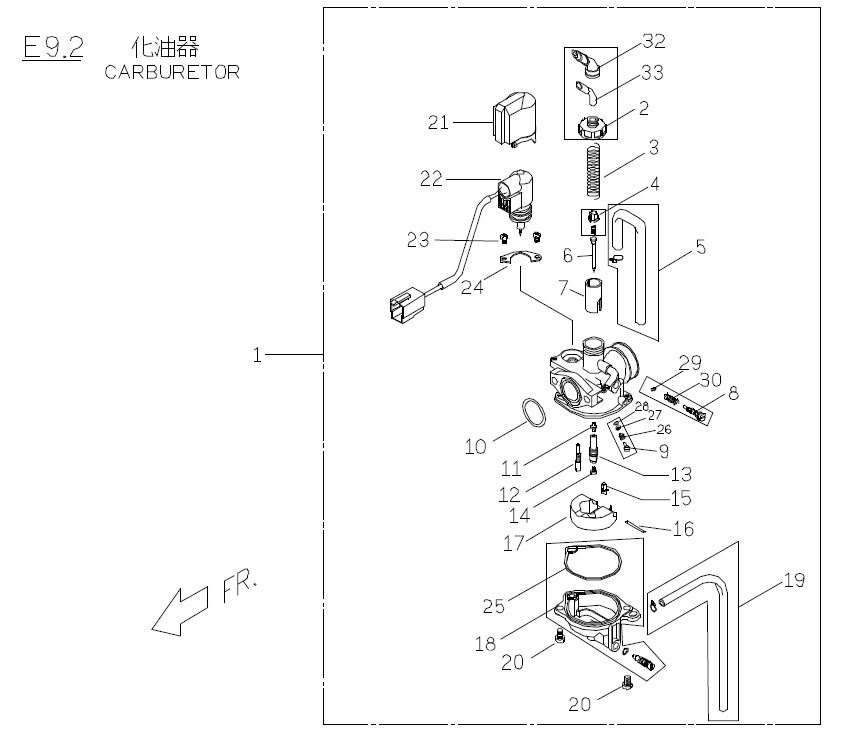

Img Ref # 1 CARBURETOR ASSY.KEIHIN PB009 (SKU: P11510020000 CARBURETOR BC)
Img Ref # 10 O RING (SKU: D19KT31500 CARBURETOR BC)
Img Ref # 11 NEEDLE JET (SKU: 1010GAKH9200 CARBURETOR BC)
Img Ref # 12 SLOW JET#35 (SKU: 1001GW3H0351 CARBURETOR BC)
Img Ref # 13 HOLDER, NEEDLE JET (SKU: N41332A00 CARBURETOR BC)
Img Ref # 14 JET, MAIN#82 (SKU: 991011160820 CARBURETOR BC)
Img Ref # 15 FLOAT VALVE SET (SKU: 106BKG8H9801 CARBURETOR BC)
Img Ref # 16 PIN, ARM (SKU: 16152KG89010M1 CARBURETOR BC)
Img Ref # 17 FLOAT SET (SKU: 105B073H9931 CARBURETOR BC)
Img Ref # 18 FLOAT CHAMBER SET (SKU: N35031H00 CARBURETOR BC)
Img Ref # 19 TUBE SET (SKU: S7858640 CARBURETOR BC)
Img Ref # 2 TOP SET (SKU: D1590TA10100 CARBURETOR BC)
Img Ref # 20 SCREW, WASHER (SKU: 938920401418 CARBURETOR BC)
Img Ref # 21 CAP HOLDER (SKU: D17838380100 CARBURETOR BC)
Img Ref # 22 AUTO BYSTARTER SET (SKU: 40000230001 CARBURETOR BC)
Img Ref # 23 SCREW, WASHER (SKU: 938920400818 CARBURETOR BC)
Img Ref # 24 PLATE SET (SKU: 1703GJ2H0040 CARBURETOR BC)
Img Ref # 25 FLOAT CHAMBER GASKET (SKU: 1051KG8H9010 CARBURETOR BC)
Img Ref # 27 PLAIN WASHER, AS (SKU: 1795KG8H9010 CARBURETOR BC)
Img Ref # 28 O-RING, AS (SKU: 16075KG89010M1 CARBURETOR BC)
Img Ref # 29 O-RING, SS (SKU: 16076ND50040 CARBURETOR BC)
Img Ref # 3 SPG., COMP. (SKU: 1300KG8H9010 CARBURETOR BC)
Img Ref # 30 COMPRESSION SPRING, SS (SKU: 1300KG8HQ010 CARBURETOR BC)
Img Ref # 31 COMPRESSION SPRING, PLATE SET (SKU: 1300GW3HQ800 CARBURETOR BC)
Img Ref # 32 CABLE SEALING CAP (SKU: 1028GB4H0030 CARBURETOR BC)
Img Ref # 33 TOP GASKET (SKU: 1031181H8310 CARBURETOR BC)
Img Ref # 4 PLATE SET (SKU: 1019GW3H9800 CARBURETOR BC)
Img Ref # 5 TUBE SET (SKU: 16199GY69000 CARBURETOR BC)
Img Ref # 6 JET NEEDLE (SKU: KT425KLE9000 CARBURETOR BC)
Img Ref # 7 THROTTLE VALVE (SKU: 1020GWOH9200 CARBURETOR BC)
Img Ref # 8 SCREW (SKU: K536TB30100 CARBURETOR BC)
Img Ref # 9 SCREW (SKU: 1014GWOH9200 CARBURETOR BC)
