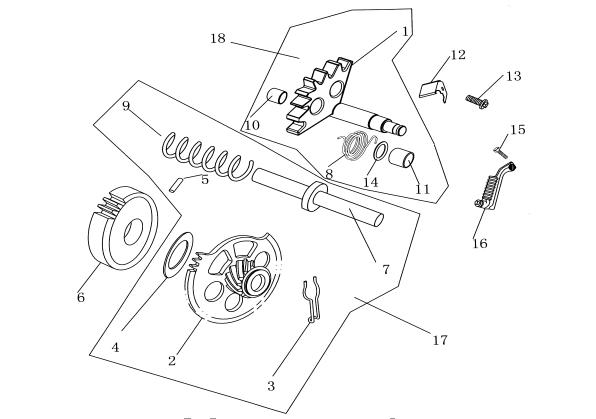

Qlink Achilles 150 Speed Change Mechanism

Image Ref: #1 STARTER AXLE (SKU: 28112-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: #3 ATTRITION SPRING (SKU: 28233-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: #4 PLASTIC WASHER 12X22X1.6 (SKU: 23383-12022-16000 ACHILLES 150 Speed Change Mechanism)

Image Ref: #5 CYLINDRICAL PIN3X8.5 (SKU: GBT119.2-2000-03085 ACHILLES 150 Speed Change Mechanism)

Image Ref: #6 DRIVEN GEAR (SKU: 28220-FYDQ-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: #7 IDLER WHEEL AXLE (SKU: 28234-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: #8 RETURN SPRING, STARTER AXLE (SKU: 28116-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: #9 SPRING, IDLER WHEEL AXLE (SKU: 28236-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: # 10 BUSH 1, STARTER AXLE (SKU: 28147-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: # 11 BUSH 2, STARTER AXLE (SKU: 28148-FYIQ2-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: # 12 LOCK PLATE (SKU: 28112-FYDQ-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: # 13 FLANGE BOLT M6X14 (WHITE) (SKU: 90103-06014-00A2F ACHILLES 150 Speed Change Mechanism)

Image Ref: # 14 SHAFT WASHER 14X24X1.5 (SKU: 28103-14024-1500B ACHILLES 150 Speed Change Mechanism)

Image Ref: # 15 HEX. BOLT M6X22 (BLACK) (SKU: GBT5783-M6X22-A2S ACHILLES 150 Speed Change Mechanism)

Image Ref: # 16 START BAR (SKU: 28300-FYDQ-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: # 17 IDLER WHEEL AXLE ASSY (SKU: 28230-FYDQ-000 ACHILLES 150 Speed Change Mechanism)

Image Ref: # 18 STARTER AXLE ASSY. (SKU: 28100-FYDQ-010 ACHILLES 150 Speed Change Mechanism)
