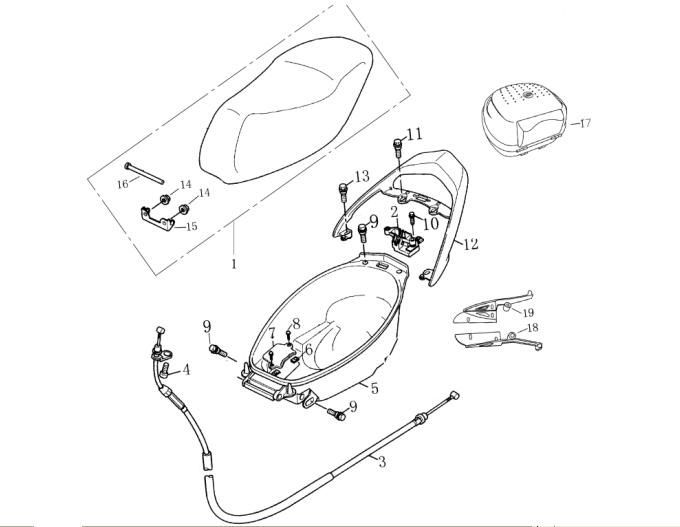

Image Ref: #1 SEAT (SKU: 77200-FYJT18-000 ACHILLES 150 Seat Assembly)

Image Ref: #2 LOCK BASE OF SEAT (SKU: 77231-FYT18-000 ACHILLES 150 Seat Assembly)

Image Ref: #3 CABLE OF SEAT LOCK (SKU: 5NV-F478E-0000 ACHILLES 150 Seat Assembly)

Image Ref: #4 SCREW M5X14 (SKU: 98507-05010-00 ACHILLES 150 Seat Assembly)

Image Ref: #5 STORAGE BOX (SKU: 81262-FYT18-000 ACHILLES 150 Seat Assembly)

Image Ref: #6 SPRING SCREW CAP (SKU: 90183-05807-00 ACHILLES 150 Seat Assembly)

Image Ref: #7 MAINTAINING COVER OF CARBURETOR (SKU: 81257-FYT18-000 ACHILLES 150 Seat Assembly)

Image Ref: #8 TAPPING SCREW ST4.8X12 (SKU: GBT845-ST4.8X13-A3H ACHILLES 150 Seat Assembly)

Image Ref: #9 HEXAGONAL BOLT (SKU: 90119-06821-00 ACHILLES 150 Seat Assembly)

Image Ref: # 10 FLANGE BOLT M6X12 (SKU: GBT16674.1-M6X12-A3H ACHILLES 150 Seat Assembly)

Image Ref: # 11 FLANGE BOLT M8X16 (SKU: GBT16674.1-M8X16-A3H ACHILLES 150 Seat Assembly)

Image Ref: # 13 FLANGE BOLT M8X25 (SKU: GBT16674.1-M8X25-A3H ACHILLES 150 Seat Assembly)

Image Ref: # 14 CAP NUT M6 (SKU: GBT6177.1-M6-A3H ACHILLES 150 Seat Assembly)

Image Ref: # 15 SEAT CONNECTING PIECE (SKU: 77210-FYT18-000 ACHILLES 150 Seat Assembly)

Image Ref: # 16 SEAT PIN (SKU: 77221-FYT18-000 ACHILLES 150 Seat Assembly)

Image Ref: # 17 TOP BOX (BLUE/QLINK) (SKU: 81300-FYT18-0BL1 ACHILLES 150 Seat Assembly)

Image Ref: # 17 TOP BOX (GUNMETAL/QLINK) (SKU: 81300-FYT18-00G1 ACHILLES 150 Seat Assembly)

Image Ref: # 17 TOP BOX (RED/QLINK) (SKU: 81300-FYT18-00R1 ACHILLES 150 Seat Assembly)
