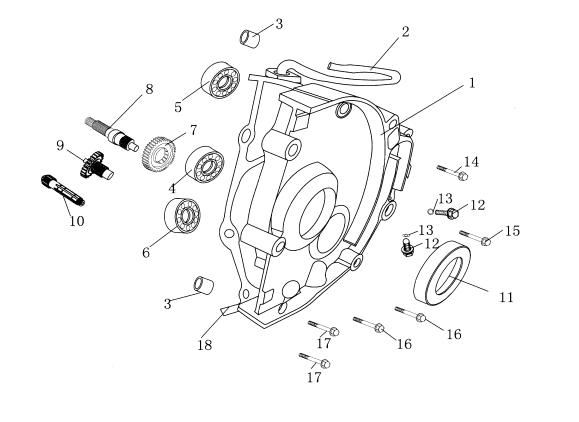

Image Ref: #1 GEARBOX COVER (SKU: 22110-FYIQ2-100 ACHILLES 150 Rear Gear Box)

Image Ref: #2 VENT PIPE, GEARBOX (SKU: 11221-FYIQ2-000 ACHILLES 150 Rear Gear Box)

Image Ref: #3 LOCATING DEWEL 8X14 (SKU: GBT879.4-8X14 ACHILLES 150 Rear Gear Box)

Image Ref: #4 BEARING 6204 (SKU: 6204P5-GBT276-94 ACHILLES 150 Rear Gear Box)

Image Ref: #5 BEARING 6202 (SKU: 6202P5-GBT276-94 ACHILLES 150 Rear Gear Box)

Image Ref: #6 BEARING 6203 (SKU: 6203P6-GBT276-94 ACHILLES 150 Rear Gear Box)

Image Ref: #7 FINAL GEAR (SKU: 23432-FYDQ-000 ACHILLES 150 Rear Gear Box)

Image Ref: #8 FINAL SHAFT (LONG) (SKU: 23431-FYDQ-110 ACHILLES 150 Rear Gear Box)

Image Ref: #9 COUNTERSHAFT (SKU: 23420-FYDQ-000 ACHILLES 150 Rear Gear Box)

Image Ref: # 10 DRIVE SHAFT (SKU: 23411-FYDQ-000 ACHILLES 150 Rear Gear Box)

Image Ref: # 11 OIL SEAL 20X32X6 (SKU: 90720-FYDQ-000 ACHILLES 150 Rear Gear Box)

Image Ref: # 12 FLANGE BOLT M8X12 (CHROME) (SKU: GBT16674.1-M8X12-F5J ACHILLES 150 Rear Gear Box)

Image Ref: # 13 GASKET 8 (RED) (SKU: 90308-FYDQ-00R ACHILLES 150 Rear Gear Box)

Image Ref: # 14 FLANGE BOLT M8X28 (CHROME) (SKU: 90103-06028-00F5J ACHILLES 150 Rear Gear Box)

Image Ref: # 15 FLANGE BOLT M8X35 (CHROME) (SKU: 90103-06035-00F5J ACHILLES 150 Rear Gear Box)

Image Ref: # 16 FLANGE BOLT M8X35 (WHITE) (SKU: 90103-06035-00A2F ACHILLES 150 Rear Gear Box)

Image Ref: # 17 FLANGE BOLT M6X28 (WHITE) (SKU: 90103-06028-00A2F ACHILLES 150 Rear Gear Box)

Image Ref: # 18 GASKET, GEARBOX COVER (SKU: 22112-FYDQ-000 ACHILLES 150 Rear Gear Box)
