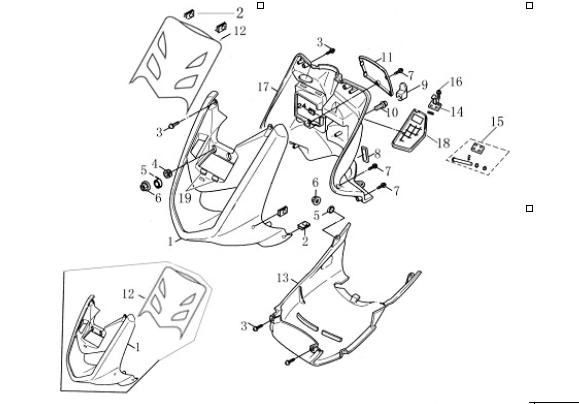

Image Ref: #1 HOLDER OF FR. PANEL (BLUE) (SKU: V022102-FYJT18-0BL01 ACHILLES 150 Protective Panel)

Image Ref: #1 HOLDER OF FR. PANEL (RED) (SKU: V022102-FYJT18-0R07 ACHILLES 150 Protective Panel)

Image Ref: #2 SPRING SCREW CAP (SKU: 90183-05807-00 ACHILLES 150 Protective Panel)

Image Ref: #3 TAPPING SCREW ST4.8X12 (SKU: GBT845-ST4.8X13-A3H ACHILLES 150 Protective Panel)

Image Ref: #4 RUBBER RING OF HEADLIGHT BRACKET (SKU: 33123-FYJ3-000 ACHILLES 150 Protective Panel)

Image Ref: #5 FLAT WASHER 6 (SKU: GBT96.1-6-A3H ACHILLES 150 Protective Panel)

Image Ref: #6 CAP NUT M6 (SKU: GBT6177.1-M6-A3H ACHILLES 150 Protective Panel)

Image Ref: #7 TAPPING SCREW ST4.8X16 (SKU: GBT845-ST4.8X16-A3H ACHILLES 150 Protective Panel)

Image Ref: #8 CAP OF OBSERVE HOLE (SKU: 64377-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: #9 HOOK OF SAFETY HELMET (SKU: 77106-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 10 FLANGE BOLT M6X16 (SKU: GBT16674.1-M6X16-A3H ACHILLES 150 Protective Panel)

Image Ref: # 11 BATTERY COVER (SKU: 31515-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 12 FR.PANEL (BLUE) (SKU: 64301-FYT18-1BL ACHILLES 150 Protective Panel)

Image Ref: # 12 FR.PANEL (RED) (SKU: 64301-FYT18-10R2 ACHILLES 150 Protective Panel)

Image Ref: # 13 FRAME BOTTOM PROTECTIVE PANEL (SKU: 50813-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 14 PULL PLATE FOR FUEL TANK PROTECTIVE COVER (SKU: 17537-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 15 FIXING PLATE (RETURN SPRING) (SKU: 17539-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 16 SHOCKPROOF CUSHION (SKU: 4TE-F0002-0000 ACHILLES 150 Protective Panel)

Image Ref: # 17 FR.STORAGE BOX (SKU: 64304-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 18 PROTECTIVE COVER FOR FUEL TANK OUTLET (SKU: 17526-FYT18-000 ACHILLES 150 Protective Panel)

Image Ref: # 19 CAP NUT M6 (SKU: GBT923-M6-A3H ACHILLES 150 Protective Panel)
