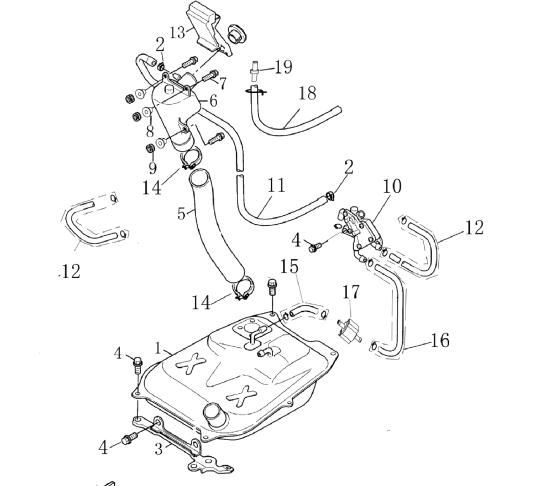

Image Ref: #1 FUEL TANK (SKU: 17500-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: #2 TUBE CLAMP (SKU: 95002-FYIF-000 ACHILLES 150 Fuel Tank)

Image Ref: #3 BRACKET OF FUEL TANK (SKU: 1753A-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: #4 FLANGE BOLT M6X12 (SKU: GBT16674.1-M6X12-A3H ACHILLES 150 Fuel Tank)

Image Ref: #5 CONNECTING LINE OF FUEL TANK (SKU: 17520-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: #6 TOP PART OF FUEL TANK (SKU: 17510-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: #7 FLANGE BOLT M6X30 (SKU: GBT16674.1-M6X30-A3H ACHILLES 150 Fuel Tank)

Image Ref: #8 BUSH FOR AIR FILTER INSTALLING (SKU: 17207-FY2-000 ACHILLES 150 Fuel Tank)

Image Ref: #9 SIDE RUBBER WASHER (SKU: 80111-FY2-000 ACHILLES 150 Fuel Tank)

Image Ref: # 10 OIL PUMP (SKU: 16950-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: # 11 FUEL LINE 1 (SKU: 16972-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: # 12 FUEL LINE (SKU: 16972-FYT6-000 ACHILLES 150 Fuel Tank)

Image Ref: # 13 CAP. FUEL TANK (SKU: 91158-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: # 14 FUEL LINE CLIP (SKU: 16975-FYT18-000 ACHILLES 150 Fuel Tank)

Image Ref: # 15 FUEL LINE (SKU: 16972-FYT18-100 ACHILLES 150 Fuel Tank)

Image Ref: # 16 FUEL LINE COMP (SKU: 16972-FYT18-400 ACHILLES 150 Fuel Tank)

Image Ref: # 18 ETHYLENE TUBE (SKU: 91A11-07054-00 ACHILLES 150 Fuel Tank)

Image Ref: # 19 JOIMT (SKU: 4TE-F1753-0000 ACHILLES 150 Fuel Tank)
