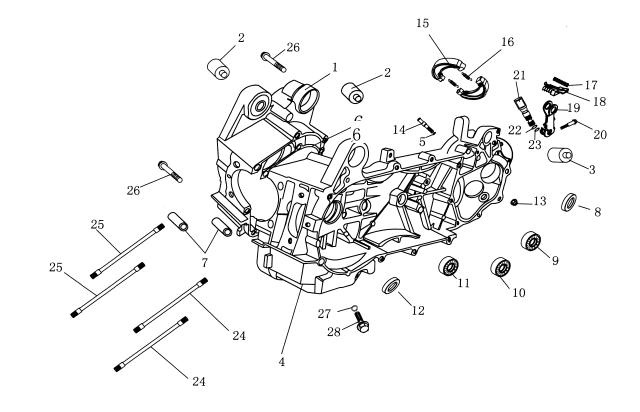

Image Ref: #1 R.CRANKCASE BODY (SKU: 11100-FYJQ-100 ACHILLES 150 Crankcase)

Image Ref: #2 BUSH,ENGINE HANGER (SKU: 11126-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: #3 BUSH,LOWER SHOCK ABSORBER,RR (SKU: 11226-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: #4 L. CARKCASE BODY?LONGER? (SKU: 11200-FYJQ-100 ACHILLES 150 Crankcase)

Image Ref: #5 O-RING 7.5X1.5 (SKU: 90775-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: #6 GASKET,CRANKCASE (SKU: 11191-FYJQ-000 ACHILLES 150 Crankcase)

Image Ref: #7 LOCATING DEWEL 8X14 (SKU: GBT879.4-8X14 ACHILLES 150 Crankcase)

Image Ref: #8 OIL SEAL 27X42X7 (SKU: 90827-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: #9 BEARING 6004 (SKU: 6004-2RSC3-GBT276-94 ACHILLES 150 Crankcase)

Image Ref: # 10 BEARING 6301 (SKU: 6301P5-GBT276-94 ACHILLES 150 Crankcase)

Image Ref: # 11 BEARING 6002 (SKU: 6002P5-GBT276-94 ACHILLES 150 Crankcase)

Image Ref: # 12 OIL SEAL 19.8X30X5 (SKU: 90719-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: # 13 LOCKNUT M8 (SKU: GBT6187.1-M8-A2F ACHILLES 150 Crankcase)

Image Ref: # 14 LOCATING DEWEL?BRAKE BLOCK (SKU: 11269-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: # 15 RR. BRAKE SHOE COMP. (BIG) (SKU: 11240-FYIQ2-000 ACHILLES 150 Crankcase)

Image Ref: # 16 RETURN SPRING,BRAKE SHOE (SKU: 43101-FYIQ2-000 ACHILLES 150 Crankcase)

Image Ref: # 17 SPRING,BRAKE ROCKER (SKU: 11261-FYIQ2-00C ACHILLES 150 Crankcase)

Image Ref: # 18 PROTECTIVE COVER, RR. BRAKE ROCKER (SKU: 11268-FYIQ2-100 ACHILLES 150 Crankcase)

Image Ref: # 19 BRAKE ROCKER (SKU: 11267-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: # 20 HEX. FLANGE BOLT M6X35 (SKU: GB5789-86-06035 ACHILLES 150 Crankcase)

Image Ref: # 21 RR. BRAKE CAM (SKU: 11265-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: # 22 O-RING 11.3X1.3 (SKU: 90711-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: # 23 O-RING 13.1X1.0 (SKU: 90713-FYDQ-000 ACHILLES 150 Crankcase)

Image Ref: # 24 STUD BOLT M8X195.5 (COLOR) (SKU: 90419-FYDQ-08C ACHILLES 150 Crankcase)

Image Ref: # 25 STUD BOLT M8X187.5 (COLOR) (SKU: 90418-FYDQ-08C ACHILLES 150 Crankcase)

Image Ref: # 26 FLANGE BOLT M6X50 (WHITE) (SKU: 90103-06050-00A2F ACHILLES 150 Crankcase)

Image Ref: # 27 GASKET 12 (SKU: GBT848-12-Al ACHILLES 150 Crankcase)

Image Ref: # 28 OIL DRAIN BOLT (CHROE) (SKU: GBT5789-96-12015-C ACHILLES 150 Crankcase)
